[RE-wrenches] Cable Ties

[Jason Szumlanski]

I'm with William on this one. We use stainless PV cable clips and the
Quickmount PV stainless PV clips that fit QRail or IronRidge. I forbid
plastic cable ties on the roof except for the temporary positioning of
wires.

Jason Szumlanski
Florida Solar Design Group









On Mon, Mar 14, 2022 at 3:28 PM William Miller <william at millersolar.com>
wrote:

> Michael:
>
>
>

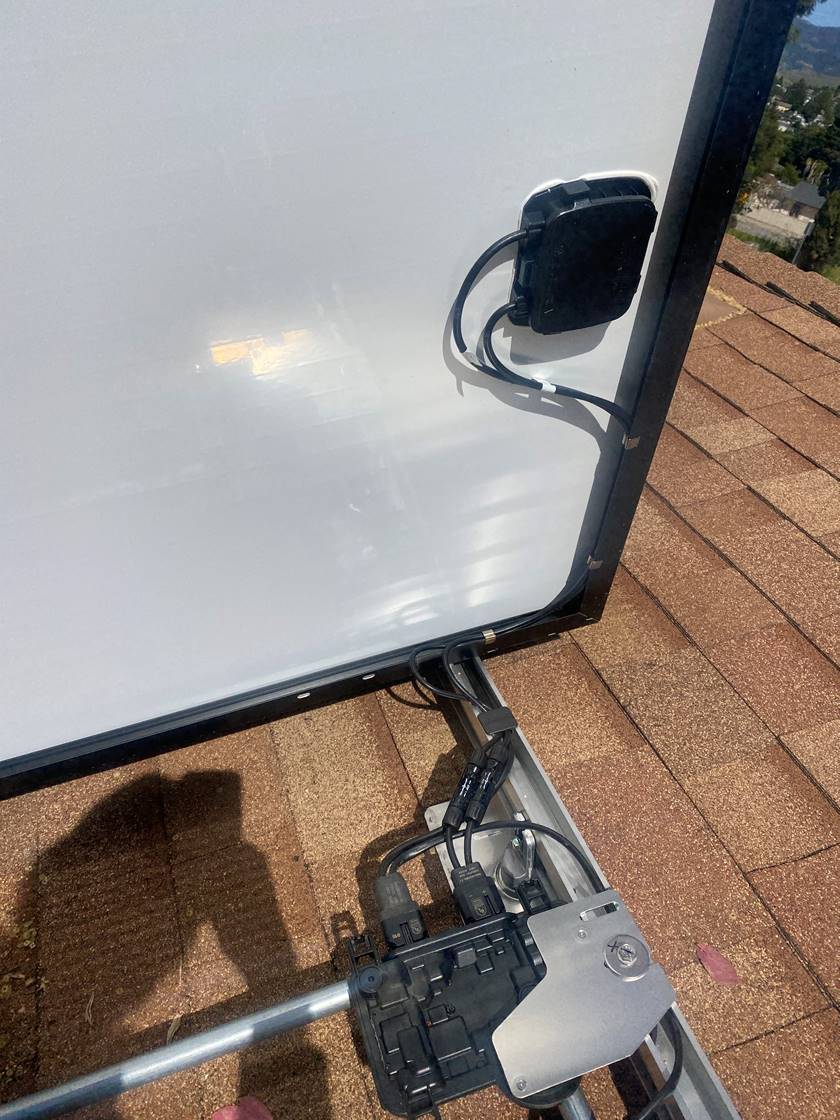

> I recommend avoiding cables ties behind PV panels, either roof or ground
> mount.  With the proper racking and technique none should be required.  See
> photo below:
>
>
>
> [image: cid:image001.jpg at 01D83799.96A06E50]
>
>
>
> This panel will lay down without any cable sag or need to reach under to
> apply cable ties.  We call this the hinge technique—all cables are lead to
> a hinge point with just the right amount of slack to allow pinch and sag
> free installation.
>
>
>
> William Miller
>
>
>
> Miller Solar
>
> 17395 Oak Road, Atascadero, CA 93422
>
> 805-438-5600
>
> www.millersolar.com
> <https://mailtrack.io/trace/link/e13d831513374d333c173ebc28f09cf77a6905a4?url=http%3A%2F%2Fwww.millersolar.com%2F&userId=1613865&signature=658ba6a1109300b7>
>
> CA Lic. 773985
>
>
>
>
>
> *From:* RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] *On
> Behalf Of *Michael Morningstar
> *Sent:* Sunday, March 13, 2022 3:12 PM
> *To:* RE-wrenches
> *Subject:* [RE-wrenches] Cable Ties
>
>
>
> Wrenches,
>
> Who makes the best cable ties, and which part number for under PV wire
> management? I keep going back to past projects where I used quality
> high-heat resistant UV rated Panduit and Burndy ties that became brittle.
>
> Thanks,
>
> Michael
>
>
>
> --
>
> Michael Morningstar
>
>
>
> Morningstar Electric
>
> PO Box 1494
>
> Mount Shasta, CA 96067
>
> 530-921-0560
>
> mjmorningstar at gmail.com
>
> [image:
> https://drive.google.com/uc?id=1b-LBqVnDNhKvT0Y-8fGS4zE62U6pMrsz&export=download]
