Michael:



I recommend avoiding cables ties behind PV panels, either roof or ground
mount.  With the proper racking and technique none should be required.  See

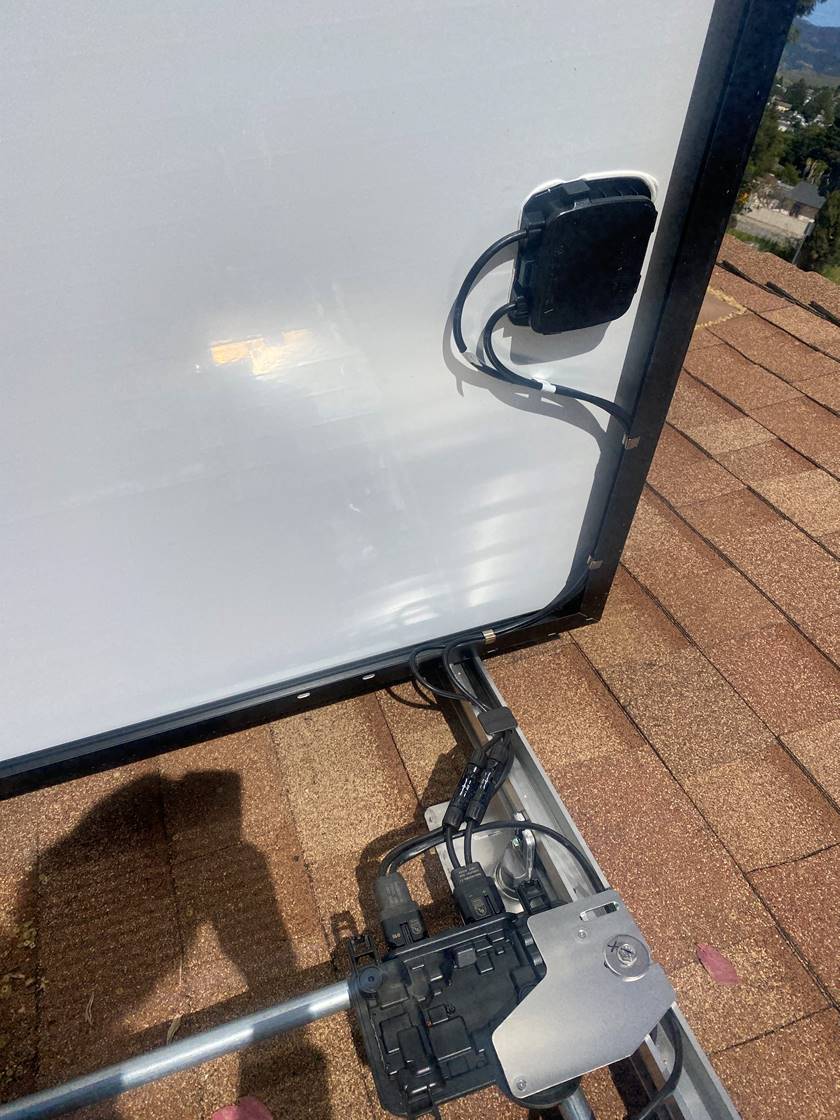

photo below:



[image: cid:image001.jpg at 01D83799.96A06E50]



This panel will lay down without any cable sag or need to reach under to
apply cable ties.  We call this the hinge technique—all cables are lead to
a hinge point with just the right amount of slack to allow pinch and sag
free installation.



William Miller



Miller Solar

17395 Oak Road, Atascadero, CA 93422

805-438-5600

www.millersolar.com

CA Lic. 773985





*From:* RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] *On
Behalf Of *Michael Morningstar
*Sent:* Sunday, March 13, 2022 3:12 PM
*To:* RE-wrenches
*Subject:* [RE-wrenches] Cable Ties



Wrenches,

Who makes the best cable ties, and which part number for under PV wire
management? I keep going back to past projects where I used quality
high-heat resistant UV rated Panduit and Burndy ties that became brittle.

Thanks,

Michael



--

Michael Morningstar



Morningstar Electric

PO Box 1494

Mount Shasta, CA 96067

530-921-0560

mjmorningstar at gmail.com

[image:
https://drive.google.com/uc?id=1b-LBqVnDNhKvT0Y-8fGS4zE62U6pMrsz&export=download]
