[RE-wrenches] Schneider Bootloader mode

[Maverick Brown]

Doesn’t the boot loader start after no code runs? Therefore couldn’t you attempt to upgrade the CC firmware again? That has worked for me in the past.  Sometimes I think Xanbus can be delicate and I’ll use the Combox direct to the device being upgraded or use the Setup tool (config tool) direct to the device being updated.

Maverick Brown
Off-Grid Solar Commander since 2006
Maverick Solar Enterprises, Inc.
 • Solar Commander Remote Power
 • SunFlow Systems Cathodic Protection
maverick at mavericksolar.com
512-460-9825


> On Feb 16, 2022, at 8:09 PM, drake.chamberlin at redwoodalliance.org wrote:
>

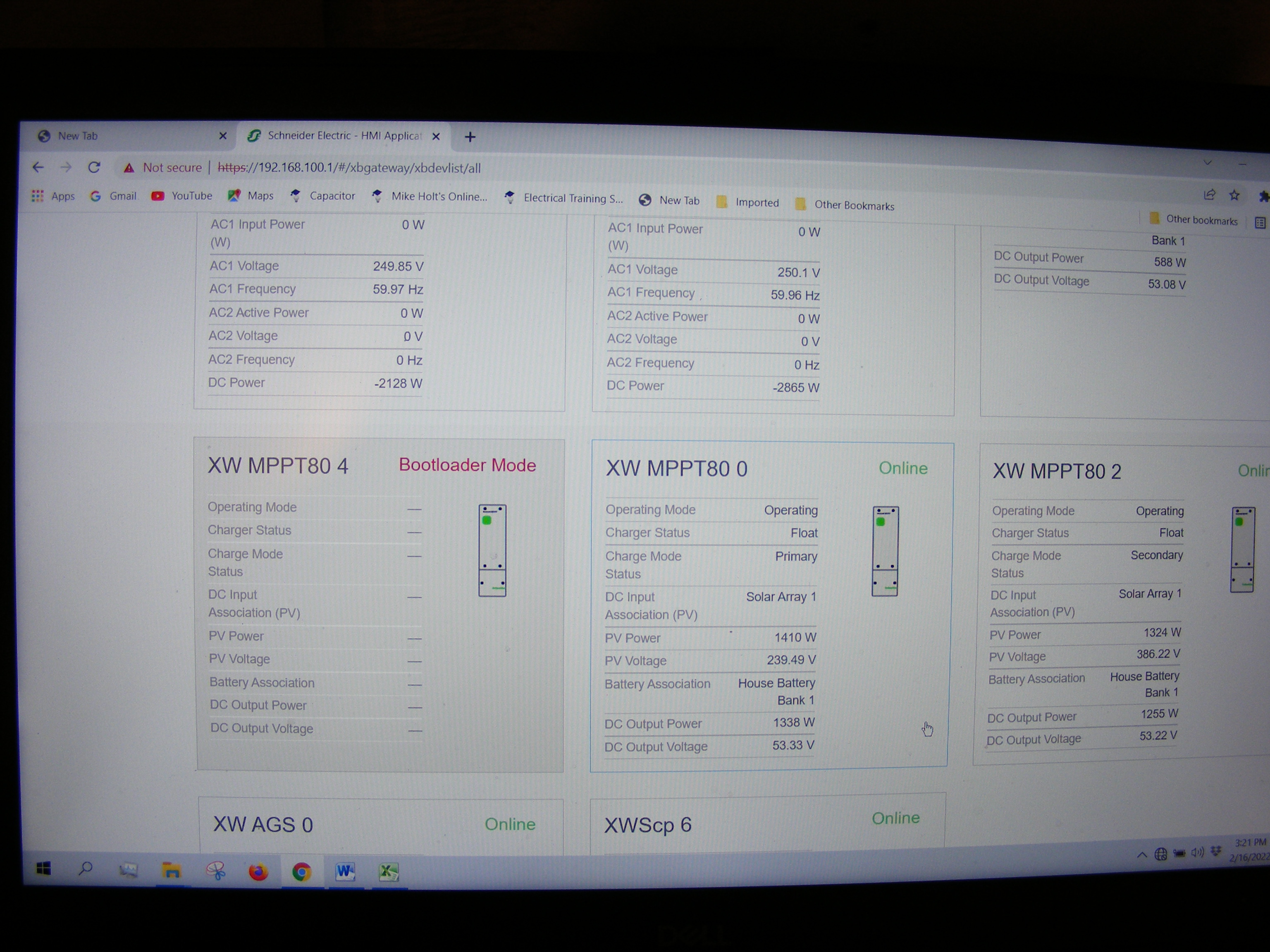

> While trying to update the firmware on a Schneider 600-80 charge controller, it went into bootloader mode and became totally unresponsive. This problem was read from the Gateway on Insight Local. Tech support claimed the CC was bad.
>
> However, the CC is working fine. It shows up on the SCP with no error codes. The only remedy that Schneider is offering is to replace the CC if it is under warranty. It likely is not.
>
> How can a Schneider device be taken out of bootloader mode (if it really is in that mode)? Could it be an error in the Gateway?
>
> Thanks,
>
> Drake
>
> Drake Chamberlin
> Athens Electric LLC
> Ohio Electrical Contractor’s License 44810
> CO Master Electrician’s License 4526
> NABCEP Certified PV Installation Professional
>
> --
