[RE-wrenches] Schneider Bootloader mode

[drake.chamberlin at redwoodalliance.org]

Unfortunately no options are provided to do anything, including no
option to update the firmware. The Charge controller is completely
locked out, cannot be affected in anyway by the Gateway.

The config tool will be the next attempt.

Thanks,

Drake

Drake Chamberlin
Athens Electric LLC
Ohio Electrical Contractor’s License 44810
CO Master Electrician’s License 4526
NABCEP Certified PV Installation Professional




On 2022-02-16 22:31, Maverick Brown wrote:

> Doesn't the boot loader start after no code runs? Therefore couldn't
> you attempt to upgrade the CC firmware again? That has worked for me in
> the past.  Sometimes I think Xanbus can be delicate and I'll use the
> Combox direct to the device being upgraded or use the Setup tool
> (config tool) direct to the device being updated.
>
> Maverick Brown
> Off-Grid Solar Commander since 2006
> Maverick Solar Enterprises, Inc.
> * Solar Commander Remote Power
> * SunFlow Systems Cathodic Protection
> maverick at mavericksolar.com
> 512-460-9825
>
>> On Feb 16, 2022, at 8:09 PM, drake.chamberlin at redwoodalliance.org
>> wrote:
>

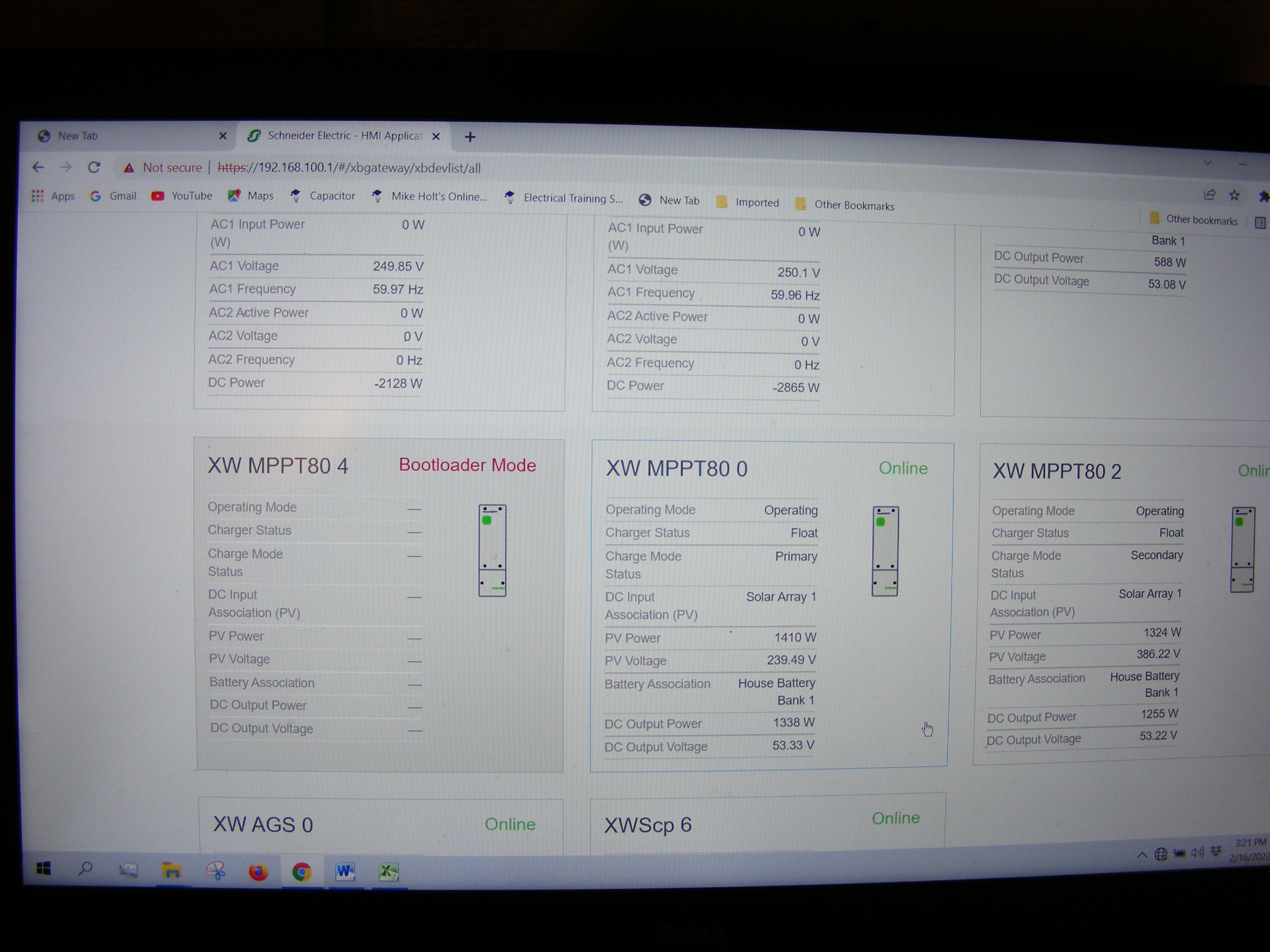

>> While trying to update the firmware on a Schneider 600-80 charge
>> controller, it went into bootloader mode and became totally
>> unresponsive. This problem was read from the Gateway on Insight Local.
>> Tech support claimed the CC was bad.
>>
>> However, the CC is working fine. It shows up on the SCP with no error
>> codes. The only remedy that Schneider is offering is to replace the CC
>> if it is under warranty. It likely is not.
>>
>> How can a Schneider device be taken out of bootloader mode (if it
>> really is in that mode)? Could it be an error in the Gateway?
>>
>> Thanks,
>>
>> Drake
>>
>> Drake Chamberlin
>> Athens Electric LLC
>> Ohio Electrical Contractor's License 44810
>> CO Master Electrician's License 4526
>> NABCEP Certified PV Installation Professional
>>
>> --
