[RE-wrenches] XW Pro multi-inverter

[Dave Angelini Offgrid Solar]

What gen are you using? I assume it is stable at 6ohz right? Needs to be
darn close, and once it qualifies it can follow the gen. If there is solar
and sun it may not do anything as the voltage will be up. You probably know

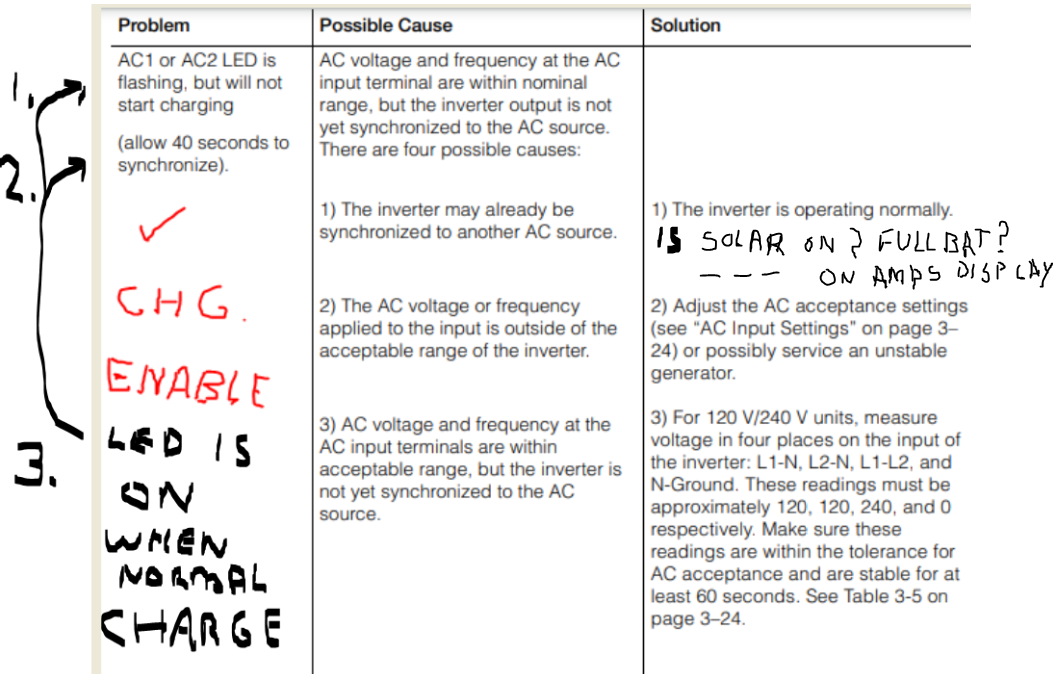

all of this. I attached a cheat sheet for a client who was having a similar
problem. Good Luck! Really am going now.....
Dave Angelini Offgrid
Solar
"we go where powerlines don't"
http://members.sti.net/offgridsolar/
[1]
e-mail offgridsolar at sti.net [2]
text 209 813 0060

On Wed, 10 Feb 2021
15:08:58 -0800, Kent Osterberg  wrote:   Have any wrenches out there
installed a Schneider XW Pro multi-inverter setup with three inverters per
the multi-inverter design guide [3]? I've got one installed per the manual
and am having a devil of a time getting it to stay latched onto the
generator with the external contactor. Can't even get it to stay latched on
with no load. All advise on getting this to work is appreciated.

 Kent
Osterberg
 Blue Mountain Solar
