[RE-wrenches] Getting Enphase IQ Cable into J Boxes

Mon Sep 14 13:30:18 EDT 2020

Thanks for confirming. That's why I like the 3/4" version since it
eliminates the need to use a separate fitting for a bare ground regardless
of how many strings you are bringing into the junction box. I don't think
most people realize it's skinned over so it can be used for 1 or 2 IQ
cables plus 1 or 0 bare wires. A single part for all Enphase cable/wire
entry combinations makes my life much easier.

On Mon, Sep 14, 2020 at 11:30 AM Bryan Norkunas <Bryan at pv-cables.com> wrote:

> Jason,
>
>
>
> Thanks for the correction, I had it wrong in our system.  I checked in our
> warehouse and the ½” does not have a skinned over membrane, there is not an
> –SM on that particular part number.
>
>
>
> We stock both sizes.
>
>
>
> *Bryan Norkunas*
>
> bryan at pv-cables.com
>
>
>
> [image: Description: Description: PV-Cables_Logo_Transparent_Bkgnd_140x140]
>
> *PV-Cables Inc. *
>
> *989 Milton Ave Ste 1D*
>
> *Ferndale CA 95536*
>
> (707) 923-3000 office
>
> www.pv-cables.com
> <https://mailtrack.io/trace/link/21cb4fcb5b31832c1b3cf4ff836360226112ff8b?url=http%3A%2F%2Fwww.pv-cables.com%2F&userId=1613865&signature=5f7c97c2452cdf36>
>
>
>
>  [image: Description: Description: cid:image002.jpg at 01CD22E8.974B6470] Please
> print only if necessary.
>
>
>
> NOTE: This email message and any attachments are for the sole use of the
> intended recipient(s) and may contain confidential and/or privileged
> information. Any unauthorized review, use, disclosure or distribution is
> prohibited. If you are not the intended recipient, please contact the
> sender by replying to this email, and destroy all copies of the original
> message.
>
>
>
>
>
>
>
> *From:* RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] *On
> Behalf Of *Jason Szumlanski
> *Sent:* Saturday, September 12, 2020 10:05 AM
> *To:* RE-wrenches
> *Subject:* Re: [RE-wrenches] Getting Enphase IQ Cable into J Boxes
>
>
>
> Bryan,
>
>
>
> I'm happy to see you have these. But the Heyco catalog doesn't show a -SM
> for the 1/2" part. They only show a 1/2" for a single tray cable with no
> bare, the M3231GCZ that is on your website. Are you saying there is another
> one not listed in the catalog that does have a bare and is skinned over?
>
>
>
>
> https://heyco-products.com/media/pdf/ec/35/10/LTC-Enphase-Q-and-Helios-UVX-ClipecNgmD5A3WCBf.pdf
> <https://mailtrack.io/trace/link/aaadccf1ab5f53c1c0dbc56df0e56bb31bbe18cb?url=https%3A%2F%2Fheyco-products.com%2Fmedia%2Fpdf%2Fec%2F35%2F10%2FLTC-Enphase-Q-and-Helios-UVX-ClipecNgmD5A3WCBf.pdf&userId=1613865&signature=aabca4016a67f747>
>
>
>
> If you bring in the M3234GDA-SM, I'm a buyer. I prefer this one to reduce
> stock parts since it's good for one or two cable entries and one or zero
> bare wires.
>
>
>
> I had been using the Arlington NMUF50 for single Q Cable entry and a
> similar gland for bare wire. This one part from Heyco simplifies everything.
>
>
>
> Jason
>
>
>
>
>
>
>
> On Fri, Sep 11, 2020 at 3:48 PM Bryan Norkunas <Bryan at pv-cables.com>
> wrote:
>
> M3231GCZ-SM is the part number for the ½” version,
>
> Though the ½” version only accepting a single 12/2 tray cable with bare
> ground.
>
>
>
> We see a bigger demand for the ½ vs the ¾”
>
>
>
>
>
> *Bryan Norkunas*
>
> bryan at pv-cables.com
>
>
>
> [image: Description: Description: PV-Cables_Logo_Transparent_Bkgnd_140x140]
>
> *PV-Cables Inc. *
>
> *989 Milton Ave Ste 1D*
>
> *Ferndale CA 95536*
>
> (707) 923-3000 office
>
> www.pv-cables.com
> <https://mailtrack.io/trace/link/4bc9f9e66d45d927c30eb2793695c9d57ff5455e?url=http%3A%2F%2Fwww.pv-cables.com%2F&userId=1613865&signature=6c1a02ae244e6749>
>
>
>
>  [image: Description: Description: cid:image002.jpg at 01CD22E8.974B6470] Please
> print only if necessary.
>
>
>
> NOTE: This email message and any attachments are for the sole use of the
> intended recipient(s) and may contain confidential and/or privileged
> information. Any unauthorized review, use, disclosure or distribution is
> prohibited. If you are not the intended recipient, please contact the
> sender by replying to this email, and destroy all copies of the original
> message.
>
>
>
>
>
>
>
>
>
> *From:* RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] *On
> Behalf Of *Jason Szumlanski
> *Sent:* Friday, September 11, 2020 12:16 PM
> *To:* RE-wrenches
> *Subject:* [RE-wrenches] Getting Enphase IQ Cable into J Boxes
>
>
>

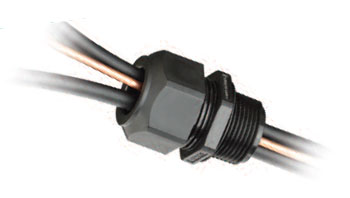

> Just a quick tip for those of you installing Enphase. I recently
> discovered there is a Heyco connector for TWO Enphase IQ cables and a bare
> ground in a single 3/4" knockout. This has saved us a bunch of time. The
> rubber gland is prepunched, but you can also use it for a single IQ cable
> since it is not punched all the way through.
>
>
>
> Part number is M3234GDA-SM, available through Mouser, Rexel, anyone who
> sells Heyco I would imagine.
>
>
>
> [image: image.png]
>
>
>
>
>
> Jason Szumlanski
>
> Florida Solar Design Group
>
>
>
> [image: Image removed by sender.]
>
