[RE-wrenches] Getting Enphase IQ Cable into J Boxes

Mon Sep 14 11:30:07 EDT 2020

Jason,

Thanks for the correction, I had it wrong in our system.  I checked in our warehouse and the ½” does not have a skinned over membrane, there is not an –SM on that particular part number.

We stock both sizes.

Bryan Norkunas

bryan at pv-cables.com

Description: Description: PV-Cables_Logo_Transparent_Bkgnd_140x140

PV-Cables Inc.

989 Milton Ave Ste 1D

Ferndale CA 95536

(707) 923-3000 office

www.pv-cables.com <http://www.pv-cables.com/>

 Description: Description: cid:image002.jpg at 01CD22E8.974B6470 Please print only if necessary.

NOTE: This email message and any attachments are for the sole use of the intended recipient(s) and may contain confidential and/or privileged information. Any unauthorized review, use, disclosure or distribution is prohibited. If you are not the intended recipient, please contact the sender by replying to this email, and destroy all copies of the original message.

From: RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] On Behalf Of Jason Szumlanski
Sent: Saturday, September 12, 2020 10:05 AM
To: RE-wrenches
Subject: Re: [RE-wrenches] Getting Enphase IQ Cable into J Boxes

Bryan,

I'm happy to see you have these. But the Heyco catalog doesn't show a -SM for the 1/2" part. They only show a 1/2" for a single tray cable with no bare, the M3231GCZ that is on your website. Are you saying there is another one not listed in the catalog that does have a bare and is skinned over?

https://heyco-products.com/media/pdf/ec/35/10/LTC-Enphase-Q-and-Helios-UVX-ClipecNgmD5A3WCBf.pdf <https://mailtrack.io/trace/link/b71bcf3e5dde833c6645c4fbfea037ae4c2377f3?url=https%3A%2F%2Fheyco-products.com%2Fmedia%2Fpdf%2Fec%2F35%2F10%2FLTC-Enphase-Q-and-Helios-UVX-ClipecNgmD5A3WCBf.pdf&userId=1613865&signature=c28ed27b0b9bdc53>

If you bring in the M3234GDA-SM, I'm a buyer. I prefer this one to reduce stock parts since it's good for one or two cable entries and one or zero bare wires.

I had been using the Arlington NMUF50 for single Q Cable entry and a similar gland for bare wire. This one part from Heyco simplifies everything.

Jason

On Fri, Sep 11, 2020 at 3:48 PM Bryan Norkunas <Bryan at pv-cables.com> wrote:

M3231GCZ-SM is the part number for the ½” version,

Though the ½” version only accepting a single 12/2 tray cable with bare ground.

We see a bigger demand for the ½ vs the ¾”

Bryan Norkunas

bryan at pv-cables.com

Description: Description: PV-Cables_Logo_Transparent_Bkgnd_140x140

PV-Cables Inc.

989 Milton Ave Ste 1D

Ferndale CA 95536

(707) 923-3000 office

www.pv-cables.com <https://mailtrack.io/trace/link/e88c4f3c835178e282afa622a525035e46765c0c?url=http%3A%2F%2Fwww.pv-cables.com%2F&userId=1613865&signature=a0f31e21bc3909a0>

 Description: Description: cid:image002.jpg at 01CD22E8.974B6470 Please print only if necessary.

NOTE: This email message and any attachments are for the sole use of the intended recipient(s) and may contain confidential and/or privileged information. Any unauthorized review, use, disclosure or distribution is prohibited. If you are not the intended recipient, please contact the sender by replying to this email, and destroy all copies of the original message.

From: RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] On Behalf Of Jason Szumlanski
Sent: Friday, September 11, 2020 12:16 PM
To: RE-wrenches
Subject: [RE-wrenches] Getting Enphase IQ Cable into J Boxes

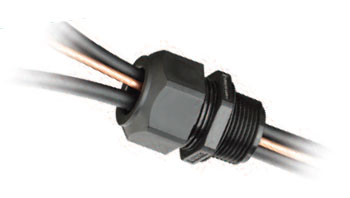

Just a quick tip for those of you installing Enphase. I recently discovered there is a Heyco connector for TWO Enphase IQ cables and a bare ground in a single 3/4" knockout. This has saved us a bunch of time. The rubber gland is prepunched, but you can also use it for a single IQ cable since it is not punched all the way through.

Part number is M3234GDA-SM, available through Mouser, Rexel, anyone who sells Heyco I would imagine.


Jason Szumlanski

Florida Solar Design Group
