[RE-wrenches] Getting Enphase IQ Cable into J Boxes

[Kirk Herander, VSE]

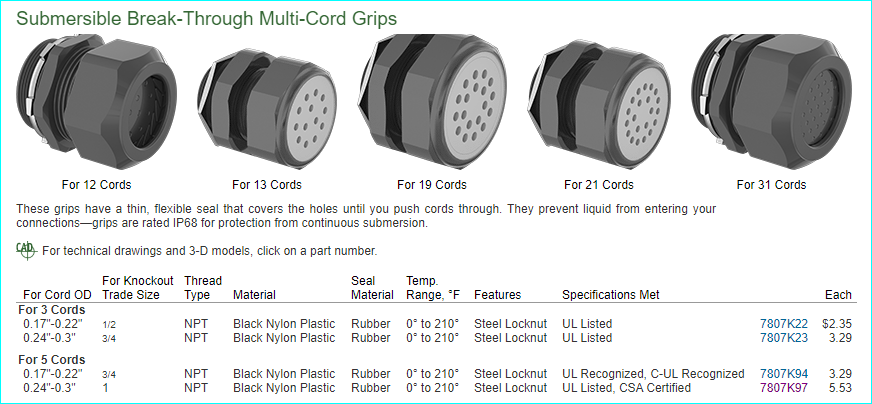

my favorite catalog for all kinds of hard to find stuff - mcmaster.com [mcmaster.com]
I buy cord connectors all the time from them - a very large variety for all sizes of cable.
Just small sample below.



Kirk Herander / kirkh at vermont.solar [mailto:kirkh at vermont.solar]
Owner|Principal, VT Solar, LLC
Celebrating our 29th Anniversary 1991-2020
www.vermont.solar [https://nam02.safelinks.protection.outlook.com/?url=www.vermontsolarnow.com&data=02%7C01%7C%7C9f0330d75a244870112408d685311841%7C84df9e7fe9f640afb435aaaaaaaaaaaa%7C1%7C0%7C636842843233477645&sdata=0NjyuKeQbEK6245SNnk8X4XnP9Q%2B%2BqtvcALkdDghvk4%3D&reserved=0]
dba Vermont Solar Engineering
802.863.1202

On 9/11/2020 3:39:29 PM, Jason Szumlanski <jason at floridasolardesigngroup.com> wrote:

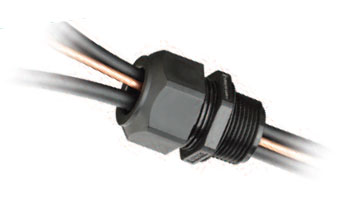

Just a quick tip for those of you installing Enphase. I recently discovered there is a Heyco connector for TWO Enphase IQ cables and a bare ground in a single 3/4" knockout. This has saved us a bunch of time. The rubber gland is prepunched, but you can also use it for a single IQ cable since it is not punched all the way through.

Part number is M3234GDA-SM, available through Mouser, Rexel, anyone who sells Heyco I would imagine.

[image.png]


Jason Szumlanski
Florida Solar Design Group
