[RE-wrenches] hueRe: Parts List For AC Couple Disconnect

[Ray]

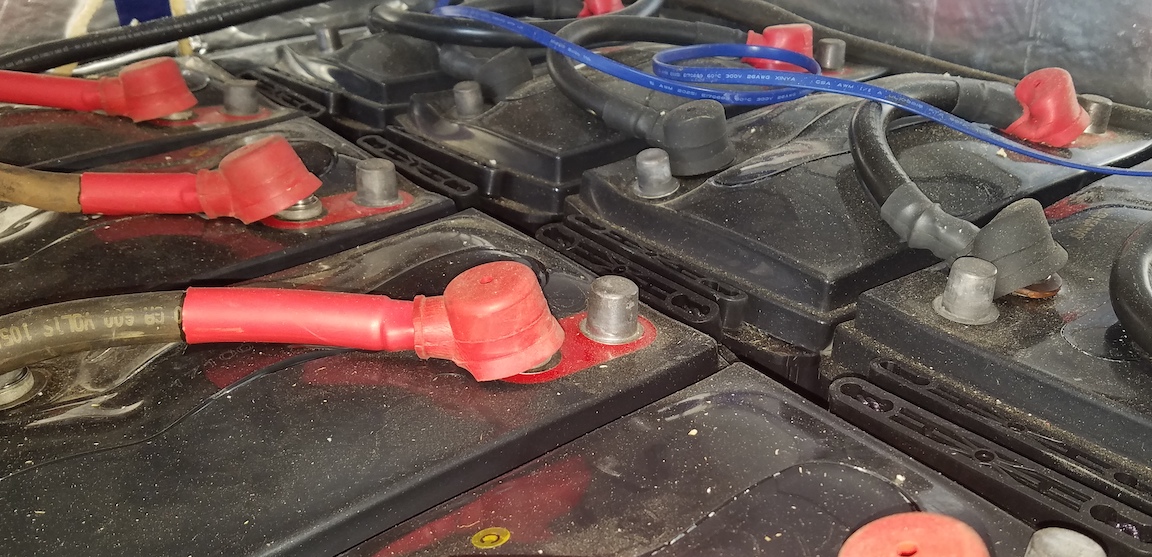

Here's a pic of an AGM battery bank that went into thermal run away.
Core temp was at over 200 F.  If you over charge a sealed battery for
long enough, with high enough charge current and don't have adequate
cooling......

You definitely want a relay to disconnect the GT inverters, in case
frequency shifting isn't working.  With a large enough array and small
battery bank, you can over shoot battery voltage really quickly and
start damaging the batteries.  I've seen just milli-amps push an AGM
battery to 64 v, once it reaches full charge.

Ray Walters
Remote Solar
303 505-8760

On 11/3/19 6:40 PM, jay wrote:
> Hi mark,
>
> Not quite.
>
> The BB will keep charging unregulated until the battery voltage
> reaches high battery voltage cutout set point.
>
>
>
> jay
>
> peltz power
>
>
>
>> On Nov 3, 2019, at 5:05 PM, Mark Frye <markf at berkeleysolar.com
>> <mailto:markf at berkeleysolar.com>> wrote:
>>
>> OK, great, I am really getting the message, but I would like to
>> understand, if for some reason the BB does not raise the frequency or
>> the GT does not response, or the BB fails to stop on HBCO the
>> ultimate consequence is unregulated charging of the battery until
>> failure?
>>
>> On 11/3/2019 4:56 PM, Glenn Burt wrote:
>>> Indeed, as long as nothing goes wrong with the BB inverters ability
>>> to shift the freq, and the GT's ability to follow the UL 1741
>>> requirements, nothing bad should happen. However it is best practice
>>> to have a secondary method in place to ensure the GT drops out of
>>> the picture. That most commonly is ensured with an interposing relay
>>> controlled by the BB inverters knowledge of the battery charge, or a
>>> secondary device that performs the measurement.
>>>
>>> -Glenn
>>> Sent from my 'smart'phone, so please excuse typos and spelling errors.
>>>
>>> ------ Original me
>
>
