[RE-wrenches] Batteries in 4' tall crawl space

[Glenn Burt]

Interesting idea, but it looks like to service them you would have to lay on your stomach and get your face right in there? Not my idea of a good time!

-Glenn



From: RE-wrenches <re-wrenches-bounces at lists.re-wrenches.org> On Behalf Of Ray
Sent: Monday, July 30, 2018 3:32 PM
To: re-wrenches at lists.re-wrenches.org
Subject: Re: [RE-wrenches] Batteries in 4' tall crawl space



Article 110.26 covering clearances in front of electrical equipment applies.  I worked on a couple like that, and I didn't like it. Very hard to move the batteries, and Combined with H2S, you are in what OSHA considers a confined hazardous space.

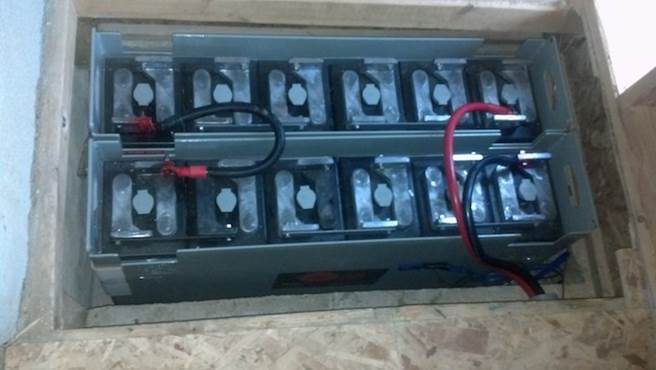

Another way to use that crawl space is to build a trap door access from the floor above.  This can work really nicely, and put the batteries right under the inverter without violating article 110.26.  I think I saw a system that either Allan Sindelar or Windy Dankoff did like that. I've tried it a few times, and everyone (customers and inspectors) was happy.  Here's a pic of some HUPs in a floor vault just below the inverter:





Ray Walters
Remote Solar
303 505-8760

On 7/30/18 8:37 AM, Dana wrote:

Safe working clearance is 6’-8”.

I have been confronted with this issue in the past taking over other’s systems care. This is a head banger & a major safety issue if something goes bad. If the batteries are 18-20” tall that only leaves anther 28-30” between bottom side of the floor joist & the top of the battery. Your face is way too close to a battery esp. if there is an issue to address.

The installation is bent over back-heavy move situation. I am assuming you have a dirt or gravel floor to move across?

It seems like a good use of space up front but the reality of the install plagues you down the road.

If it is WLA batteries it is the worst of situations.



Even if this is not inspected, please avoid this situation.



----------------------------------------------------------------------------

Dana Orzel                              Great Solar Works, Inc.

C - 208.721.7003                       dana at solarwork.com <mailto:dana at solarwork.com>

Idaho Contractor - # 028765         Idaho PV # 028374

NABCEP # 051112-136                       www.solarwork.biz <http://www.solarwork.biz>

"Responsible Technologies for Responsible People since 1988"

P Please consider the environment before printing this email.





From: RE-wrenches  <mailto:re-wrenches-bounces at lists.re-wrenches.org> <re-wrenches-bounces at lists.re-wrenches.org> On Behalf Of Jerry Caldwell
Sent: Saturday, July 28, 2018 6:10 PM
To: re-wrenches at lists.re-wrenches.org <mailto:re-wrenches at lists.re-wrenches.org>
Subject: [RE-wrenches] Batteries in 4' tall crawl space



Wrenches,



I have a customer who wants to have batteries installed in a 4' tall crawl space / short basement. Are there any accessibility code issues with installing batteries in a crawl space? Does the NEC address this?



Thanks,
Jerry Caldwell
