[RE-wrenches] Cable Ties

Tue Mar 15 19:39:55 EDT 2022

I'm currently testing GripLockTies. https://griplockties.com/ I really really like them so far. The rubber lining makes it really soft on sensitive wires such as coax, but more importantly, the rubber lining makes it grip really well, so it never slides, and wires don't slide in them. They are thick and really strong... typical breaking point of over 300 lbs, rated for 70 lbs. I haven't found them to get brittle yet... They are UV-rated, but as you say, that doesn't always mean all that much. I've only been testing for a couple of years though. They also are releasable and reusable, which normally doesn't matter, but once in a while, that's really nice. They are mostly manufactured for high-vibration applications like race airplanes where a zip tie failure can result in an engine failure, which can be terrifying if not fatal mid-flight. They were invented by a well-known race airplane and bush-plane builder named Mike Patey.

Thanks,
Kienan

Maxfield Solar
maxfieldsolar at hotmail.com<mailto:maxfieldsolar at hotmail.com>
(801) 631-5584 (Cell)
________________________________
From: RE-wrenches <re-wrenches-bounces at lists.re-wrenches.org> on behalf of Chris Worcester <chris at solarwindworks.com>
Sent: Monday, March 14, 2022 9:33 PM
To: RE-wrenches <re-wrenches at lists.re-wrenches.org>; william at millersolar.com <william at millersolar.com>
Subject: Re: [RE-wrenches] Cable Ties

Our go to "cable ties" have been stainless steel hose clamps with about a 3" length of 600v 3/4" heat shrink pulled over the end before tightening around the rails to secure trunk lines, we also stay away from zip ties.
Bulk ordering the 4' lengths of heat shrink and SS hose clamps.

Chris Worcester
chris at solarwindworks.com
530-448-9692

Sent from my Samsung Galaxy s9.

-------- Original message --------
From: Jason Szumlanski <jason at floridasolardesigngroup.com>
Date: 3/14/22 12:58 PM (GMT-08:00)
To: william at millersolar.com, RE-wrenches <re-wrenches at lists.re-wrenches.org>
Subject: Re: [RE-wrenches] Cable Ties

I'm with William on this one. We use stainless PV cable clips and the Quickmount PV stainless PV clips that fit QRail or IronRidge. I forbid plastic cable ties on the roof except for the temporary positioning of wires.

Jason Szumlanski
Florida Solar Design Group

On Mon, Mar 14, 2022 at 3:28 PM William Miller <william at millersolar.com<mailto:william at millersolar.com>> wrote:

Michael:

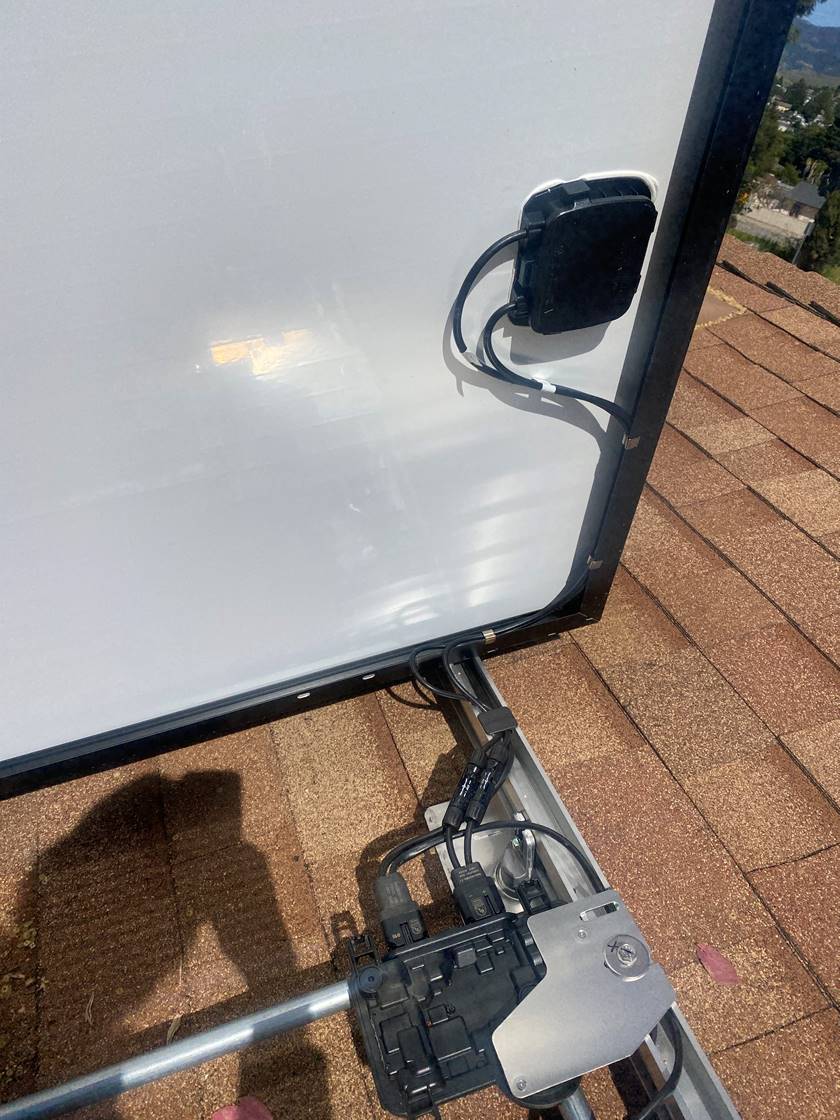

I recommend avoiding cables ties behind PV panels, either roof or ground mount.  With the proper racking and technique none should be required.  See photo below:

[cid:image001.jpg at 01D83799.96A06E50]

This panel will lay down without any cable sag or need to reach under to apply cable ties.  We call this the hinge technique—all cables are lead to a hinge point with just the right amount of slack to allow pinch and sag free installation.

William Miller

Miller Solar

17395 Oak Road, Atascadero, CA 93422

805-438-5600

www.millersolar.com<https://mailtrack.io/trace/link/e13d831513374d333c173ebc28f09cf77a6905a4?url=http%3A%2F%2Fwww.millersolar.com%2F&userId=1613865&signature=658ba6a1109300b7>

CA Lic. 773985

From: RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org<mailto:re-wrenches-bounces at lists.re-wrenches.org>] On Behalf Of Michael Morningstar
Sent: Sunday, March 13, 2022 3:12 PM
To: RE-wrenches
Subject: [RE-wrenches] Cable Ties

Wrenches,

Who makes the best cable ties, and which part number for under PV wire management? I keep going back to past projects where I used quality high-heat resistant UV rated Panduit and Burndy ties that became brittle.

Thanks,

Michael

--

Michael Morningstar

Morningstar Electric

PO Box 1494

Mount Shasta, CA 96067

530-921-0560

mjmorningstar at gmail.com<mailto:mjmorningstar at gmail.com>

[https://drive.google.com/uc?id=1b-LBqVnDNhKvT0Y-8fGS4zE62U6pMrsz&export=download]
