[RE-wrenches] Getting Enphase IQ Cable into J Boxes

[Bryan Norkunas]

M3231GCZ-SM is the part number for the ½” version,

Though the ½” version only accepting a single 12/2 tray cable with bare ground.



We see a bigger demand for the ½ vs the ¾”





Bryan Norkunas

 <mailto:bryan at pv-cables.com> bryan at pv-cables.com



Description: Description: PV-Cables_Logo_Transparent_Bkgnd_140x140

PV-Cables Inc.

989 Milton Ave Ste 1D

Ferndale CA 95536

(707) 923-3000 office

 <http://www.pv-cables.com/> www.pv-cables.com



 Description: Description: cid:image002.jpg at 01CD22E8.974B6470 Please print only if necessary.



NOTE: This email message and any attachments are for the sole use of the intended recipient(s) and may contain confidential and/or privileged information. Any unauthorized review, use, disclosure or distribution is prohibited. If you are not the intended recipient, please contact the sender by replying to this email, and destroy all copies of the original message.









From: RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] On Behalf Of Jason Szumlanski
Sent: Friday, September 11, 2020 12:16 PM
To: RE-wrenches
Subject: [RE-wrenches] Getting Enphase IQ Cable into J Boxes

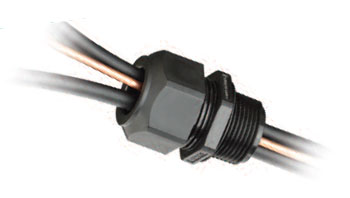

Just a quick tip for those of you installing Enphase. I recently discovered there is a Heyco connector for TWO Enphase IQ cables and a bare ground in a single 3/4" knockout. This has saved us a bunch of time. The rubber gland is prepunched, but you can also use it for a single IQ cable since it is not punched all the way through.



Part number is M3234GDA-SM, available through Mouser, Rexel, anyone who sells Heyco I would imagine.








Jason Szumlanski

Florida Solar Design Group
