[RE-wrenches] Getting Enphase IQ Cable into J Boxes

[Jason Szumlanski]

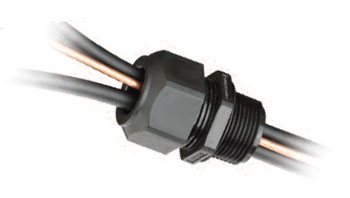

Just a quick tip for those of you installing Enphase. I recently discovered
there is a Heyco connector for TWO Enphase IQ cables and a bare ground in a
single 3/4" knockout. This has saved us a bunch of time. The rubber gland
is prepunched, but you can also use it for a single IQ cable since it is
not punched all the way through.

Part number is M3234GDA-SM, available through Mouser, Rexel, anyone who
sells Heyco I would imagine.

[image: image.png]


Jason Szumlanski
Florida Solar Design Group
