[RE-wrenches] Best Battery

[Dave Angelini Offgrid Solar]

Hi Ray,

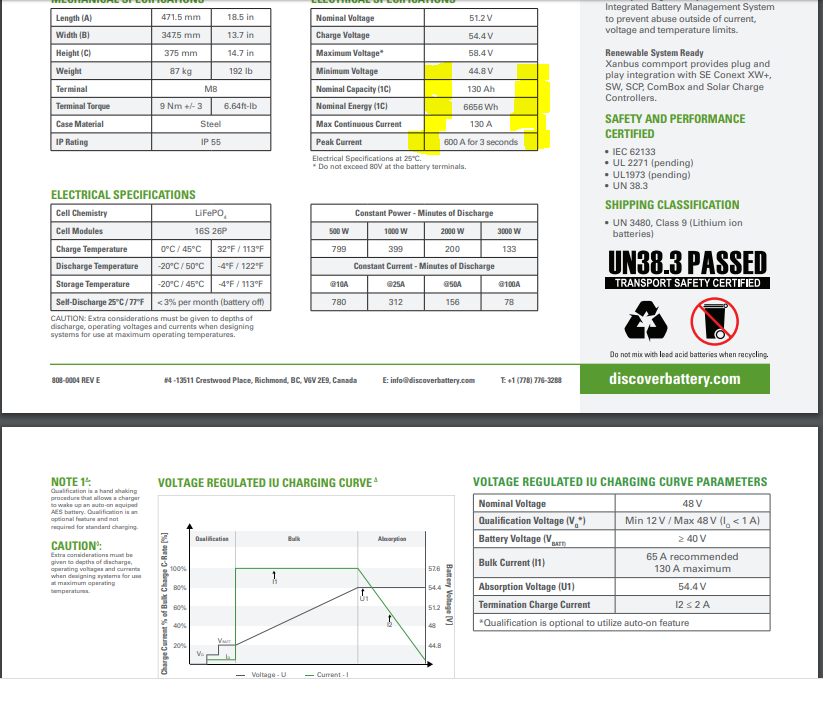

I guess it is not my last :) I attached AES battery. Fortress
is similar. AES quickstart on Schneider is program the time and date for
config. You do not need a computer as the SCP can be used. Both are closed
loop BMS to inverter/charger/mppt on xw and csw. I am hoping Outback will
do something like this.

I have helped quite a few wrenches with getting
the Insight monitoring going remotely. It is not any more difficult than
optics which I run also. It is not easy, and the quickstart must be

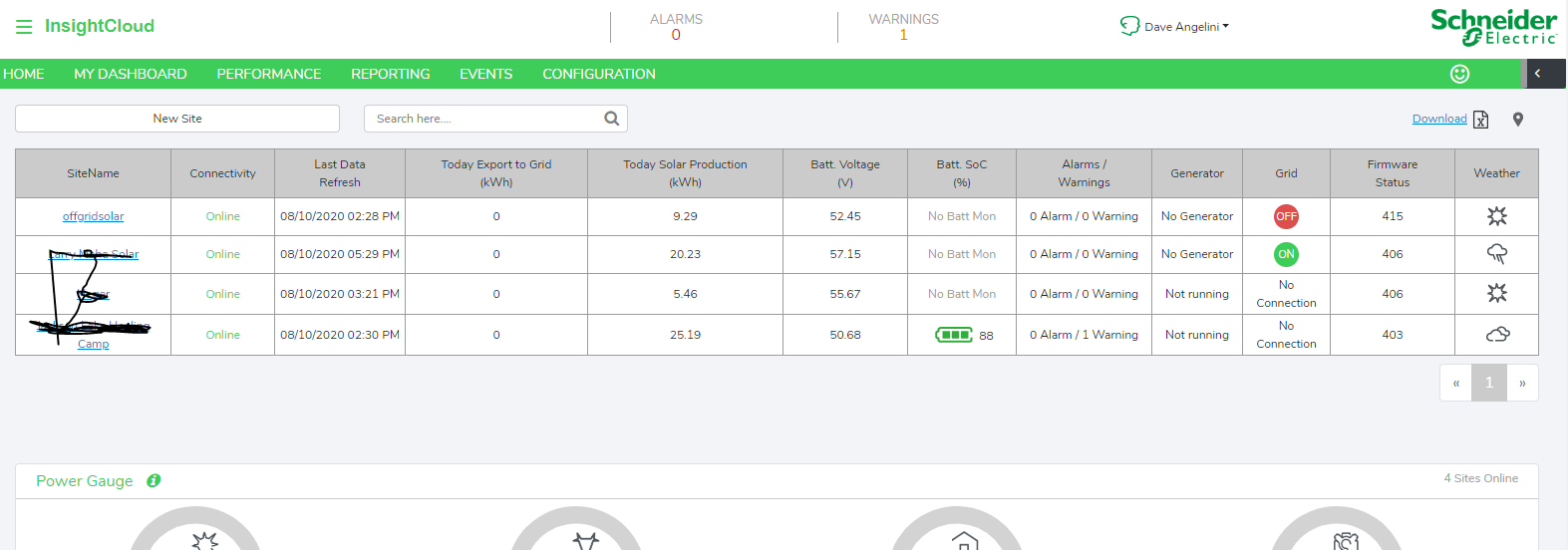

followed exactly. Attached a screen from 5 minutes back. It has been
extremely reliable also.

Below is the case. My guess as to why this takes
so long is that it is a UL cert issue for Schneider. Cost quite a bit of
money for the testing or to change the range of LBCO. My guess only.


		DATE:
 		Mon, 10 Aug 2020 11:29:05 -0700 (PDT)

		FROM:
 		"Solar
Support EMEA (solar.support.emea at schneider-electric.com)"

A new case was
just created using On Line - CIB Tech Support Schneider Electric Industries
SAS.

Case Message:865xxxx LBCO max is 48 vdc, needs to be higher for some
batteries like simplyphi.

Dave Angelini Offgrid Solar
"we go where
powerlines don't"
http://members.sti.net/offgridsolar/ [1]
e-mail
offgridsolar at sti.net [2]
text 209 813 0060

On Mon, 10 Aug 2020 14:47:49
-0600, Ray  wrote:

Appreciate forwarding this to Schneider. So you
never had any issues programming their monitoring system or getting it
connected to the internet via the customer's router?

What is the LBCO
recommended for the Li+ batteries you are using? Default on many inverters
for FLA is 42 or 44 volts, so I didn't realize any Li+ batteries could work
correctly that low.
Ray Walters
Remote Solar
303 505-8760
 On 8/10/20
2:24 PM, Dave Angelini Offgrid Solar wrote:
