[RE-wrenches] Tesla Powerwall Emergency Stop Button

[Lorenzo Ortiz]

Wrenches,

Does anyone have experience installing an 'Emergency Stop Button' for Tesla
Powerwall or similar energy storage systems? Not a knife-blade disco but a
low-voltage 'plunger' style button that shuts down all power (even in
backup mode) for first responders.
Our AHJ has been forcing us to install gigantic 200A discos between our ESS
and the main service. Tried explaining that these systems are designed to
operate when the power goes out so the disco is next to useless but... AHJs
will be AHJs...

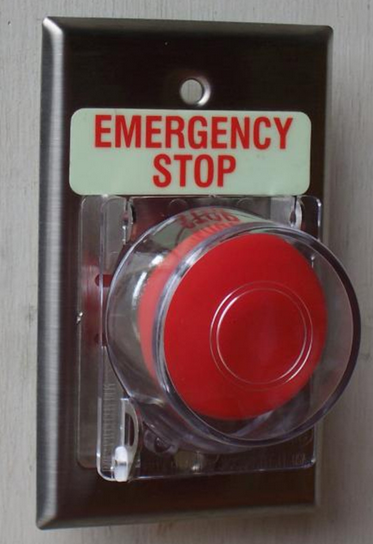

I've attached a pic to give an idea of what I'm looking for. Hoping to find
a reliable option, with the following characteristics:



*• Must be Lockable on ON/OFF position• Must have a clear indication of
ON/OFF position• Must be outdoor rated (NEMA 3R or higher)• Should observe
12V, 0.1 A ratings*

Thanks

--


Loren Ortiz
Technical PV Design Specialist - Worker Owner/Board Member

loren at cal-solar.com californiasolarco.com

*Main: 530-274-3671 ext: 311 * *Fax: 530-274-7518*

--
 <https://californiasolarco.com/referral_form/>
*Showroom located at: 149 E
Main St. Grass Valley, CA 95945*
