[RE-wrenches] protecting wire below 8' w/awning array

[Sam Haraldson]

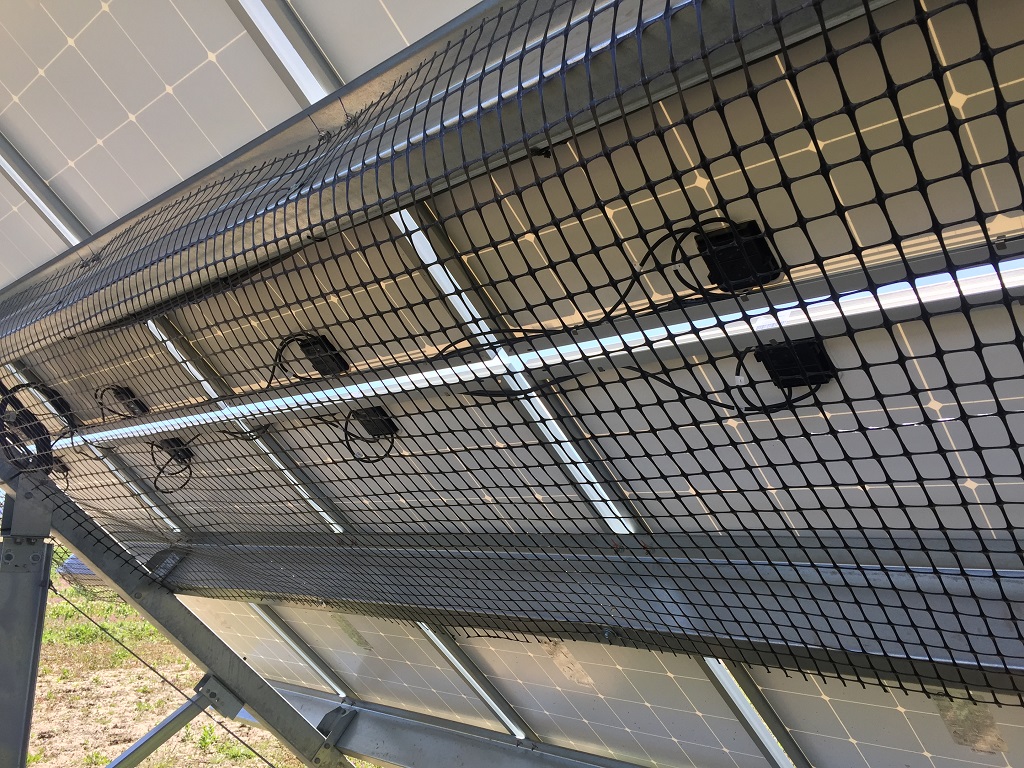

Much like Ray we have interpreted this protection to mean the "dangerous"
parts of the solar and not the module frame.  As such we employed plastic
"deer fence" Tek screwed to some racking components in one array where the
client wished for more tamper-resistance at the point where the conductors
were close to the ground.

Another solution similar to this is employed by All Earth Renewables for
their ground mount arrays that employs a tasteful looking piece of opaque
coroplast.  It rests along the backside of the modules to keep people's
hands from touching conductors and looks a little cleaner than a piece of
mesh.
