[RE-wrenches] HUP cell removal
Ray
ray at solarray.com
Thu Nov 7 10:09:18 EST 2019
They are made up of removable 2 v cells, and they are much better than
the Surrettes. They come with all the interconnects prewired, have a
better warranty, longer cycle life, free shipping, and most importantly
they Perform better. They will outlast all of the batteries you listed,
not just on paper, but in real life. They also hold their voltage under
load much better than the Surrettes. Once customers go with the HUPs,
we quit having to worry about them.

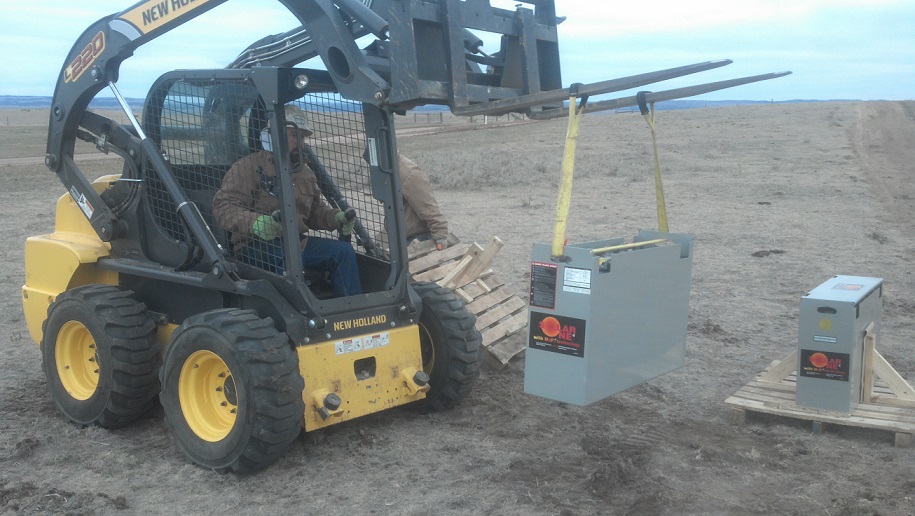

We primarily have our power equipment in the garage of the house, then
use a Bob cat to move the batteries straight off the truck and into
their final resting place in under 30 minutes. I sold and installed
some of the other brands before settling on the HUPs many years ago. The
previous install Pic was just demonstrating how they can be disassembled
if needed, here's how we do it most of the time:
Ray Walters
Remote Solar
303 505-8760
On 11/7/19 7:27 AM, frenergy wrote:
>
> I'm with you, the replacement battery for these HUPs are Surrettes.
>
> On 11/7/2019 4:26 AM, Tump wrote:
>> My question is WHY do folks still install these steel cased Pain the
>> A*& BBs when we have 2 volt cells (UnigiII/Surrette/Crown)that have
>> up to 2400AH @20hr rate and are easily moved by hand, fork truck,
>> shovel! 2 volt cells is always the way to go.
>>> On Nov 5, 2019, at 11:47 PM, Ray <ray at solarray.com
>>> <mailto:ray at solarray.com>> wrote:
>>>
>>> We've used an engine hoist before, but for tight spaces, we built a
>>> rig out of unistrut with a small block and tackle. Come along can
>>> be hard to use, and puts dangerous metal parts over the battery.
>>>
>>>
>>> I've since gone to a winch system, and also try to move the
>>> batteries on rollers without taking the cells out.
>>>
>>> Ray Walters
>>> Remote Solar
>>> 303 505-8760
>>> On 11/5/19 6:36 AM, Michael Packard wrote:
>>>> I did this exact same thing for a 48v Hup one battery bank. Engine
>>>> hoist worked like a charm and my back was very thankful!
>>>>
>>>>
>>>>
>>>>
>>>> On Tue, Nov 5, 2019 at 12:09 AM Allan Sindelar
>>>> <allan at sindelarsolar.com <mailto:allan at sindelarsolar.com>> wrote:
>>>>
>>>> Bill, I just did that a month ago, and it went amazingly
>>>> smoothly. Earlier, on a similar HUP replacement, I told the
>>>> (absentee) client that I would rent an engine hoist to lift the
>>>> cells out of the steel cases, and he advised me that it would
>>>> cost him less labor and travel if I bought one of the Chinese
>>>> engine hoists from Harbor Freight for $90 and just kept it.
>>>> Turned out to be a good application for CCC (thanks, Bob-O). A
>>>> concrete floor, the engine hoist, a simple hand truck and a
>>>> strong assistant to share the load made light work of both
>>>> removal and installation - all 4,000 pounds of it, one 200 lb.
>>>> cell at a time... so I went dancing that evening.
>>>> Allan
>>>>
>>>> > On Nov 4, 2019, at 9:46 PM, frenergy <frenergy at psln.com
>>>> <mailto:frenergy at psln.com>> wrote:
>>>> >
>>>> > I'm going to have to remove the cells from 4 HUP Solar1
>>>> battery cases to change-out the pack (no option, bad access).Â
>>>> Anyone ever had problems come-a-longing from above the first
>>>> cell and if so, what's the solution?...and what are you doing
>>>> tomorrow?
>>>> >
>>>> > Thx,
>>>> >
>>>> > Bill
>>>> >
