[RE-wrenches] Snow-frame damage

[Blake Gleason]

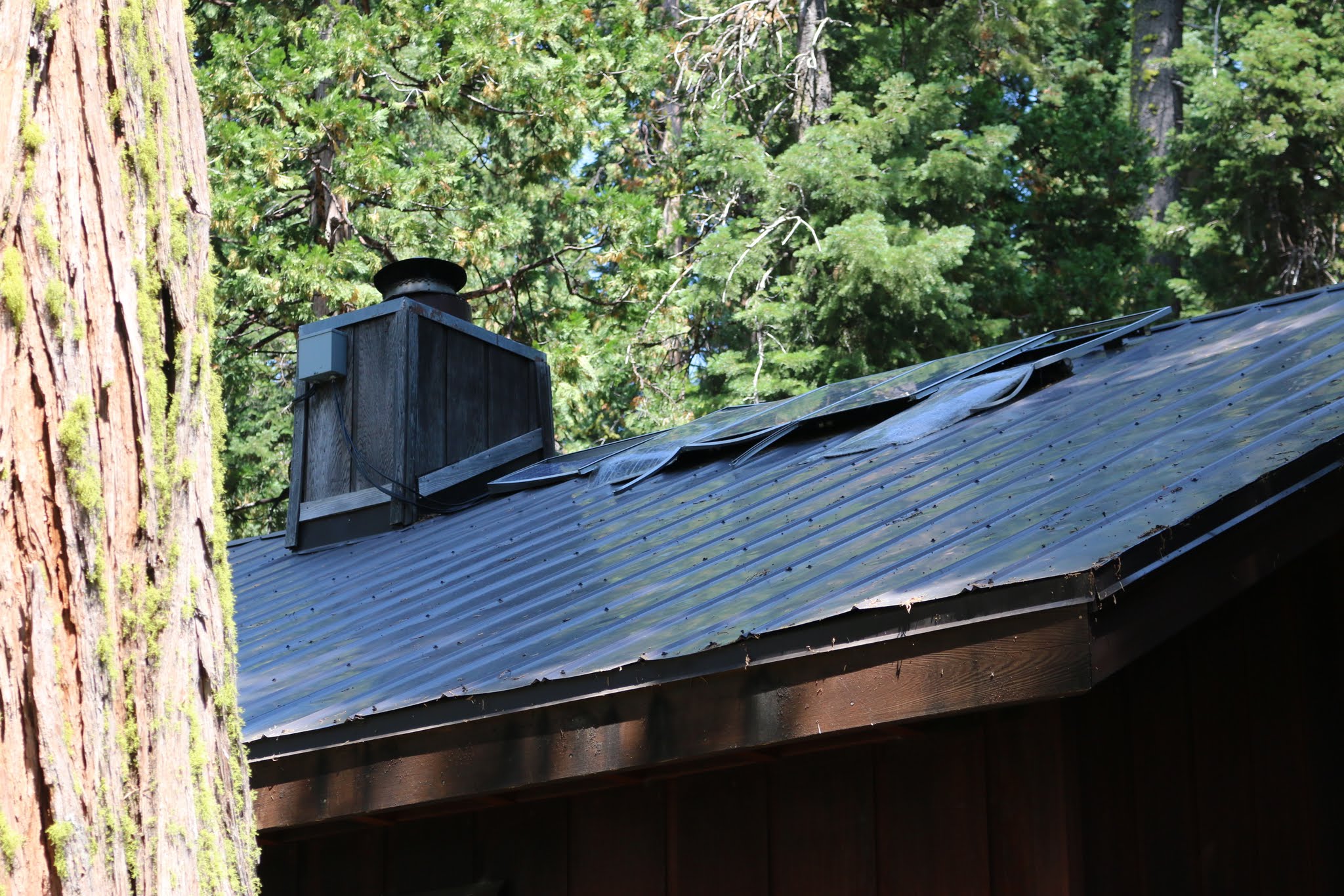

In my photo (not the greatest - sorry!), the middle modules have unbroken
glass.  The one on  the left has a severely bent bottom frame section, and
the one on the right has a completely failed (torn away) bottom frame
section.  The other modules in the photo have failed bottom frame sections
AND glass/laminate creeping out through the (missing) bottom frame.  I
believe the glass on those two shattered after it started creeping out of
the frame ...

On Wed, Aug 28, 2019 at 4:22 PM Ray <ray at solarray.com> wrote:

> Is it possible the snow load broke the glass, then the snow shear/ ice dam
> tore the bottom edge off?  or just the ice dam pulls the bottom edge off?
> Just haven't seen that type of damage here in Colorado/ New Mexico/
> Wyoming.  I think its much drier here overall, so perhaps our snow is
> lighter weight.  Heavy Spring Snows seem to melt off but with climate
> changes, we might start seeing new types of damage.
>
> Ray Walters
> Remote Solar
> 303 505-8760
>
> On 8/28/19 4:29 PM, Blake Gleason wrote:
>
> Snow ripping out module frames (on the roof):
>
> [image: IMG_7134.jpg]
>
> On Mon, Aug 26, 2019 at 2:37 PM frenergy <frenergy at psln.com> wrote:
>
>> I've got a customer that is pushing me to lower the bottom edge of a
>> multipole rack array to make it less visible from his house (which is .6
>> miles away!).  Its 4 PVs in landscape, I currently have it designed with
>> the lower edge at 3.5 feet off the ground which is actually questionable
>> with the 2-3 feet of snow we get here sometimes. Flat ground, 25 degree
>> pitch.
>>
>>             If anybody has pics (or words of wisdom) of the bottom edge
>> of a PV frame being ripped of due to snow not being able to shed properly
>> from *this **type of installation (or pole mount would help)*, I would
>> appreciate the help.
>>
>> Bill
>>
>> Feather River Solar Electric
>> Bill Battagin, Owner
>> 4291 Nelson St.
>> Taylorsville, CA 95983
>> 530.284.7849
>> CA Lic 874049www.frenergy.net
>>
>>
>>
