[RE-wrenches] Percent of DC capacity that is inverted to AC kWh?

[August Goers]

Hi Chris -

I'd recommend reading through the PVWatts Calculator and manual:
https://pvwatts.nrel.gov/

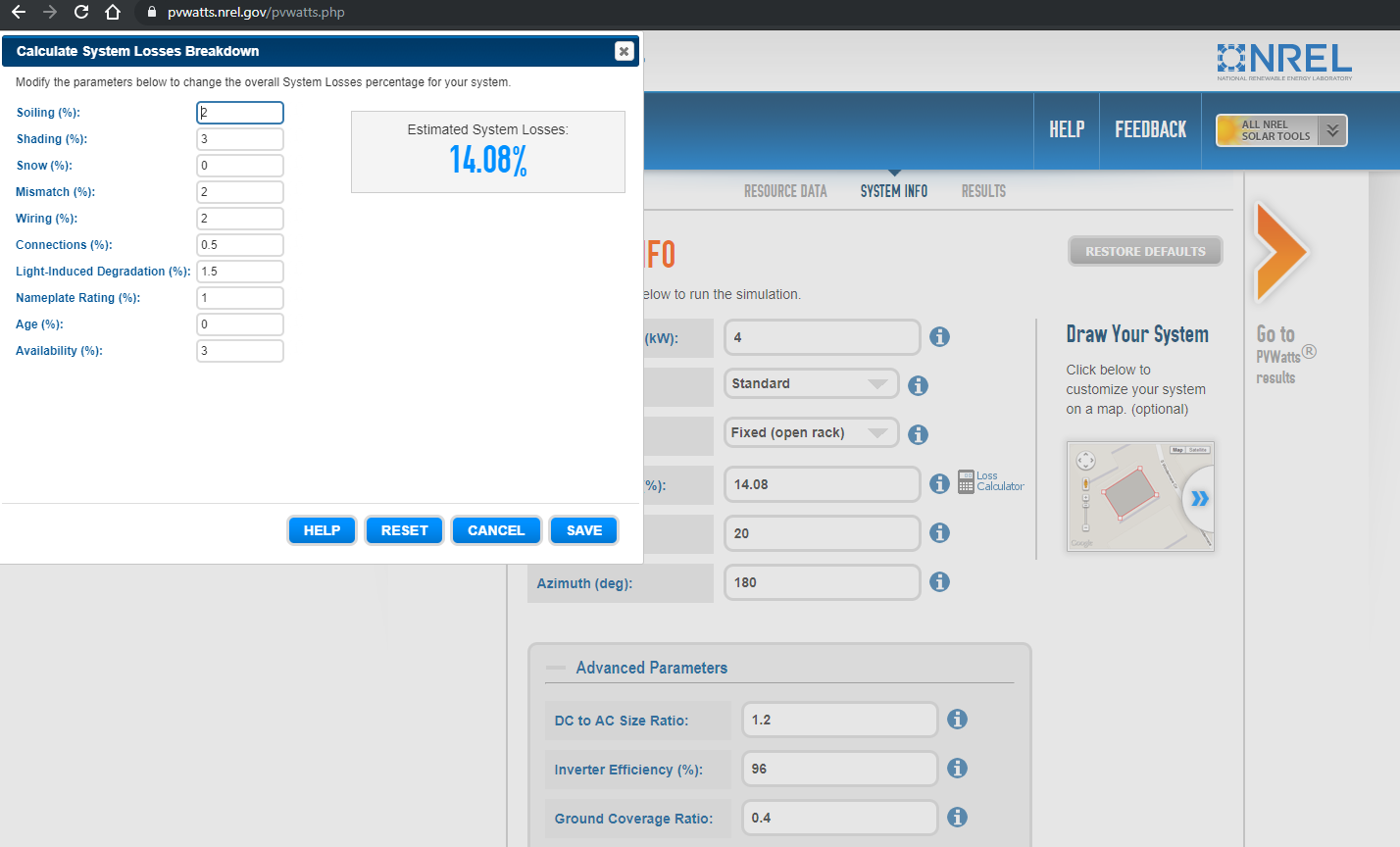

If you click the help button you'll get to the manual, and you can simulate
a sample system by just entering in a zip code. The default settings
estimate losses at about 14% prior to the inverter efficiency loss.

https://pvwatts.nrel.gov/

[image: image.png]

August
Luminalt


On Wed, Aug 28, 2019 at 6:31 AM Christopher Warfel <
cwarfel at entech-engineering.com> wrote:

> Hi Dan, Sorry for the confusion.
>
> Maybe an example would help.  Take a 2000 w dc multimode system that is
> coupled with a 3600 w ac rated multimode inverter.  What percentage of
> the dc capacity is inverted into ac capacity.  So, roughly 2000 x .9
> (wiring and similar losses from array to battery) x .95 for an assumed
> 5% usage to charge/float the batteries x .98 for dc to ac inverter
> efficiency makes me think that 2000 x .9 x .95 x .98 * (4.5 x 365)
> yields = 2,752 kWh annually. The utility is assuming roughly 3600 x .98
> x (4.5 x 365) {if they are assuming anything at all} = 5,368 kWh revenue
> lost. The regulatory assumption overestimates the capacity factor by @49%.
>
> I'll post to the WRENCHES too to help clarify hopefully.   Chris
>
> On 8/28/2019 9:10 AM, Dan Lepinski, P.E. wrote:
> > OFF-LINE REPLY
> >
> > Hello Chris,
> >
> > The wording of your question is confusing.  You ask about the percentage
> of DC capacity vs AC power output, then add batteries into the mix.
> >
> > What system topology is the focus of your query?
> >
> > I'll be glad to do what I can to assist.  Just need clear direction on
> the configuration.
> >
> >
> > Regards,
> >
> >
> > Dan
> >
