[RE-wrenches] Supporting heavy flooded batteries

[jay]

HI William,

Here is how I do big HUP type batteries.

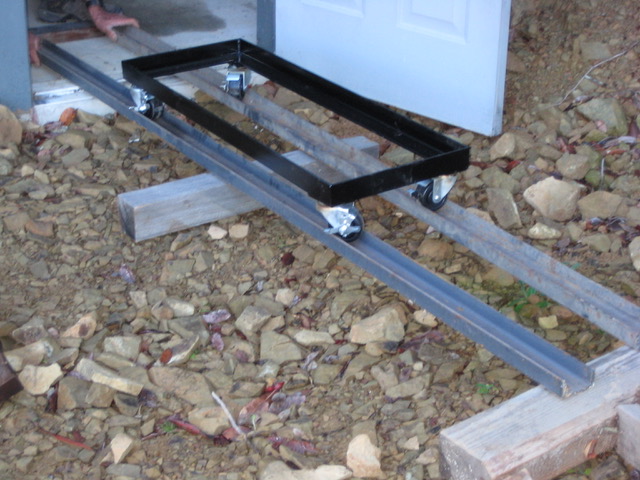

Metal frame, and wheels.  You can use either hi durometer synthetic or metal wheels.
This one the guy had powered coated

Jay

Peltz Power








> On Apr 3, 2019, at 3:05 PM, William Miller <william at millersolar.com> wrote:
>
> Friends:
>
> For years we have been supporting large form-factor flooded battery trays by setting them on pressure treat 4X4s. We have developed a cradle we bolt onto a special-order, narrow pallet jack and roll them over the wood supports.  It is not a seismic solution, but it works.
>
> Just today I have learned that at least one large battery manufacturer is recommending against using any form of wood, apparently due to the potential for rot and/or conductive paths.  I am told that the solution is steel racking with plastic covers over the steel.
>
> How are the rest of you supporting your large flooded batteries?
>
> Thanks in advance,
>
> William
>
>
> Miller Solar
> 17395 Oak Road, Atascadero, CA 93422
> 805-438-5600
> www.millersolar.com <http://www.millersolar.com/>
> CA Lic. 773985
>
