[RE-wrenches] Corrugated Metal - Odd Seam Profile

[Howie Michaelson]

In the vain of Williams caution, you may also want to look at the amount of
space between the bottom of the elevated section of the corrugated profile
and the top of the ridge it is straddling - it may require a thicker
gasketing or butyl layer in order to create a good seal.
Howie
Sun Catcher
www.suncatchervt.com


On Fri, Feb 15, 2019 at 11:04 AM William Miller <william at millersolar.com>
wrote:

> Ray:
>
>
>
> The straddle block does not fit every profile.  We have been burned by
> this reality.  Check your measurements.
>
>
>
> William
>
>
>
>
>
>
>
> *From:* RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] *On
> Behalf Of *Ray
> *Sent:* Thursday, February 14, 2019 10:42 PM
> *To:* re-wrenches at lists.re-wrenches.org
> *Subject:* Re: [RE-wrenches] Corrugated Metal - Odd Seam Profile
>
>
>

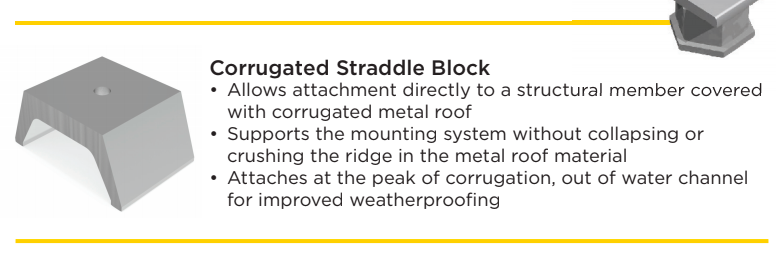

> SnapNRack makes a Corrugated Straddle Block
>
> Ray Walters
>
> Remote Solar
>
> 303 505-8760
>
> On 2/14/19 10:37 AM, Jason Szumlanski wrote:
>
> Have you looked at the Proteabracket?
>
> Jason Szumlanski
> Principal Solar Designer
> Florida Solar Design Group
>
>
>
> On Thu, Feb 14, 2019, 12:05 PM Sam Haraldson <sam at onsiteenergyinc.com
> wrote:
>
> Wrenches,
>
>
>
> I have encountered a corrugated metal seam profile that doesn't fit the
> standard S-5! Corrubracket we typically employ.  I'm looking for alternate
> solutions if you will, please.   The corrugation pattern is 1-1/4" from
> "ridge" top to "ridge" top and the depth of the "valley" is 1/4".  A
> drawing is attached explaining this further.
>
>
>
> --
>
> *Sam Haraldson*, Installation Manager
> <https://onsiteenergyinc.com/about-us#haraldson>
> OnSite Energy, Inc.
>
> NABCEP PV Pro #PV-042217-016714
>
