[RE-wrenches] Corrugated Metal - Odd Seam Profile

[William Miller]

Ray:



The straddle block does not fit every profile.  We have been burned by this
reality.  Check your measurements.



William







*From:* RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] *On
Behalf Of *Ray
*Sent:* Thursday, February 14, 2019 10:42 PM
*To:* re-wrenches at lists.re-wrenches.org
*Subject:* Re: [RE-wrenches] Corrugated Metal - Odd Seam Profile

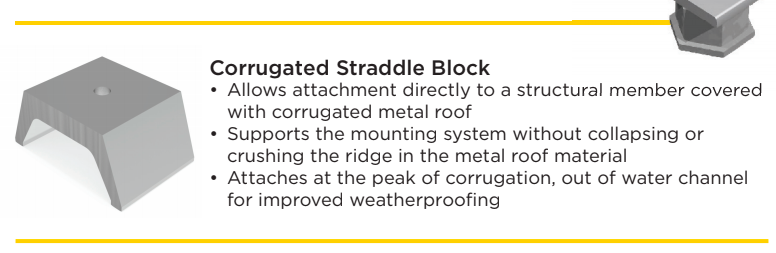

SnapNRack makes a Corrugated Straddle Block

Ray Walters

Remote Solar

303 505-8760

On 2/14/19 10:37 AM, Jason Szumlanski wrote:

Have you looked at the Proteabracket?

Jason Szumlanski
Principal Solar Designer
Florida Solar Design Group



On Thu, Feb 14, 2019, 12:05 PM Sam Haraldson <sam at onsiteenergyinc.com wrote:

Wrenches,



I have encountered a corrugated metal seam profile that doesn't fit the
standard S-5! Corrubracket we typically employ.  I'm looking for alternate
solutions if you will, please.   The corrugation pattern is 1-1/4" from
"ridge" top to "ridge" top and the depth of the "valley" is 1/4".  A
drawing is attached explaining this further.



--

*Sam Haraldson*, Installation Manager
<https://onsiteenergyinc.com/about-us#haraldson>
OnSite Energy, Inc.

NABCEP PV Pro #PV-042217-016714
