[RE-wrenches] Stuck in a furl

[Dan Fink]

The furl bearing and yaw bearing are common failure points with these
turbines after years in the air. We have also observed there is no way to
align replacements. We could have put in  Delrin  bushings for a few months
more life, but we ended up building him a new turbine, a Hugh Piggott
design and a new custom controller to replace the EZ-Fire controller....we
could have re-used the EZ-Wire but simply didn't trust it, the new one is
incredibly versatile, programmable and has communications capability.

Contact me off list for more information about the controller or turbine.

Dan Fink
Professor of Solar Energy Technology, Ecotech Institute
IREC Certified Instructor™ for:
~ PV Installation Professional
~ Small Wind Installer
Executive Director, Buckville Energy
NABCEP Registered Continuing Education Providers™
970.672.4342



On Wed, Mar 7, 2018 at 12:42 PM, Mac Lewis <maclewis1 at gmail.com> wrote:

> Hello wrenches,
>

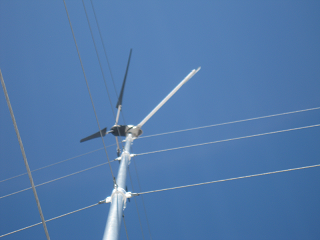

> I have a client with an older Whisper 200, 1 kW wind turbine.  We didn't
> install this but have taken over the site maintenance since the original
> installer left town.  The site recently experienced prolonged relatively
> high winds for 3-4 days.  After that, he went out and noticed that the tail
> is stuck in the side-furling position.
>
>
>
>
>
>
>   I'm not very familiar with this turbine or wind turbines in general, but
> looking at a manual, it looks like we may need a new bushing or maybe even
> a new casting.  Does anyone have any idea where I could order parts for
> this turbine?  Is there a suitable replacement turbine we should be looking
> at?  At last check, the turbine was putting out good power and passed all
> electrical checks.
>
> Thanks in advance for your expertise
>
>
> --
>
>
>
> Mac Lewis
>
> *"Yo solo sé que no sé nada." -Sócrates*
>
> _______________________________________________
> List sponsored by Redwood Alliance
>
> List Address: RE-wrenches at lists.re-wrenches.org
>
> Change listserver email address & settings:
> http://lists.re-wrenches.org/options.cgi/re-wrenches-re-wrenches.org
>
> List-Archive: http://www.mail-archive.com/re-wrenches@lists.re-wrenches.
> org/maillist.html
>
> List rules & etiquette:
> www.re-wrenches.org/etiquette.htm
>
> Check out or update participant bios:
> www.members.re-wrenches.org
>
>
>
