[RE-wrenches] AGS quiet time

[Ray Walters]

Another thing to consider is that factory recommended settings are fully
charging the battery, when off grid you really only want the generator
to bring the battery up to 70 or 80% and then allow the sun to do the
rest.  I've recently been raising the start voltages so that the
batteries don't get down into the harder to predict < 20% SOC range, but
then also lowering the shutoff voltages, so that the generator doesn't
run so long.  Running a generator for that topping off phase is
wasteful, and just not necessary anymore with LiPo4.

Finding the best voltage settings with LiPO4, is tricky, since they have
more stable voltage for most of their range.  However, spending the time
to dial in a system can significantly reduce gen run time, which helps
everybody.

Ray Walters
remote Solar


On 4/12/2026 10:43 AM, Mac Lewis via RE-wrenches wrote:
> Wrenches,
>
> I think Victron offers a great model for integrating an effective
> autostart logic, more geared toward an off-grid system of course.
> They have many, many options and you can use the quiet time to segment
> how you want it to behave during specific time periods.  An
> example would be using quiet time in the hours before dawn to start
> the generator at a lower State of Charge (SOC) and also stop at a
> lower SOC before the sun comes up.  Another nice feature is a DC
> current start trigger and an AC current start trigger.  You could use
> this to base the start on actual battery load, not just inverter load,
> so if solar provides sufficient current, the generator won't
> necessarily trigger.to <http://trigger.to> run.
>

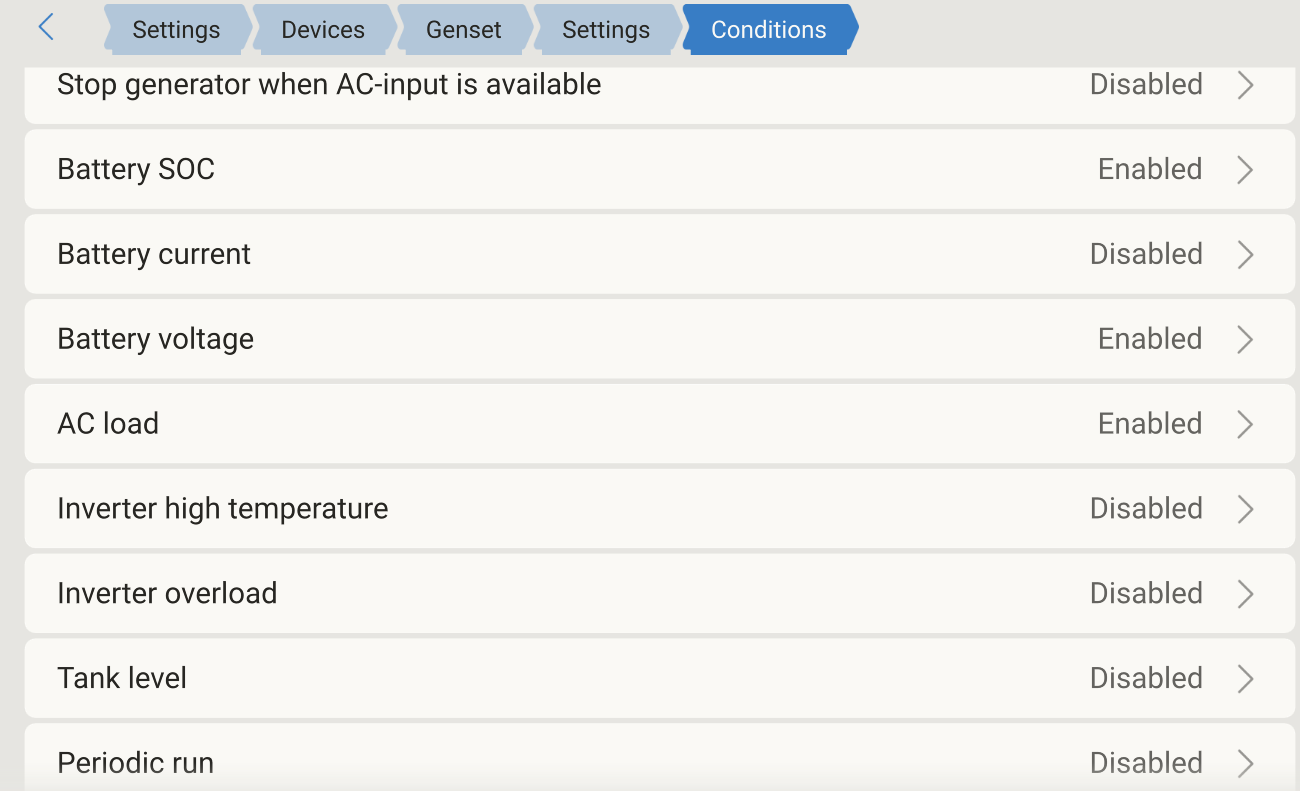

> Here is a screenshot of some of the triggers available:
>
> image.png
>
> On Sun, Apr 12, 2026 at 10:22 AM Zeke Yewdall via RE-wrenches
> <re-wrenches at lists.re-wrenches.org> wrote:
>
>     The ability to stop the generator when the sun comes out is one
>     advantage of the AIO's over older equipment (at least the Midnite
>     AIO can do that, not sure about others).  That was always super
>     annoying when people didn't have a large enough battery bank to
>     make it till morning, and the generator would start at 5am, and
>     fully recharge the batteries, leaving the solar with nothing to do
>     when it did finally come out.  I had one customer build his own
>     PLC controller just to accomplish that on an outback system.
>
>     I agree, having a quiet time that still starts the generator, just
>     at a lower SOC, could be a good option.
>
>     Zeke
>
>     _______________________________________________
>     List sponsored by Redwood Alliance
>
>     Pay optional member dues here: http://re-wrenches.org
>
>     List Address: RE-wrenches at lists.re-wrenches.org
>
>     Change listserver email address & settings:
>     http://lists.re-wrenches.org/options.cgi/re-wrenches-re-wrenches.org
>
>     There are two list archives for searching. When one doesn't work,
>     try the other:
>     https://www.mail-archive.com/re-wrenches@lists.re-wrenches.org/
>     http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org
>
>     List rules & etiquette:
>     http://www.re-wrenches.org/etiquette.htm
>
>     Check out or update participant bios:
>     http://www.members.re-wrenches.org
>
>
>
> --
>
>
>
> Mac Lewis
>
> *
>
> "Yo solo sé que no sé nada." -Sócrates
>
> *
>
