[RE-wrenches] AGS quiet time

[Mac Lewis]

Wrenches,

I think Victron offers a great model for integrating an effective autostart
logic, more geared toward an off-grid system of course.  They have many,
many options and you can use the quiet time to segment how you want it to
behave during specific time periods.  An example would be using quiet time
in the hours before dawn to start the generator at a lower State of Charge
(SOC) and also stop at a lower SOC before the sun comes up.  Another nice
feature is a DC current start trigger and an AC current start trigger.  You
could use this to base the start on actual battery load, not just inverter
load, so if solar provides sufficient current, the generator won't
necessarily trigger.to run.

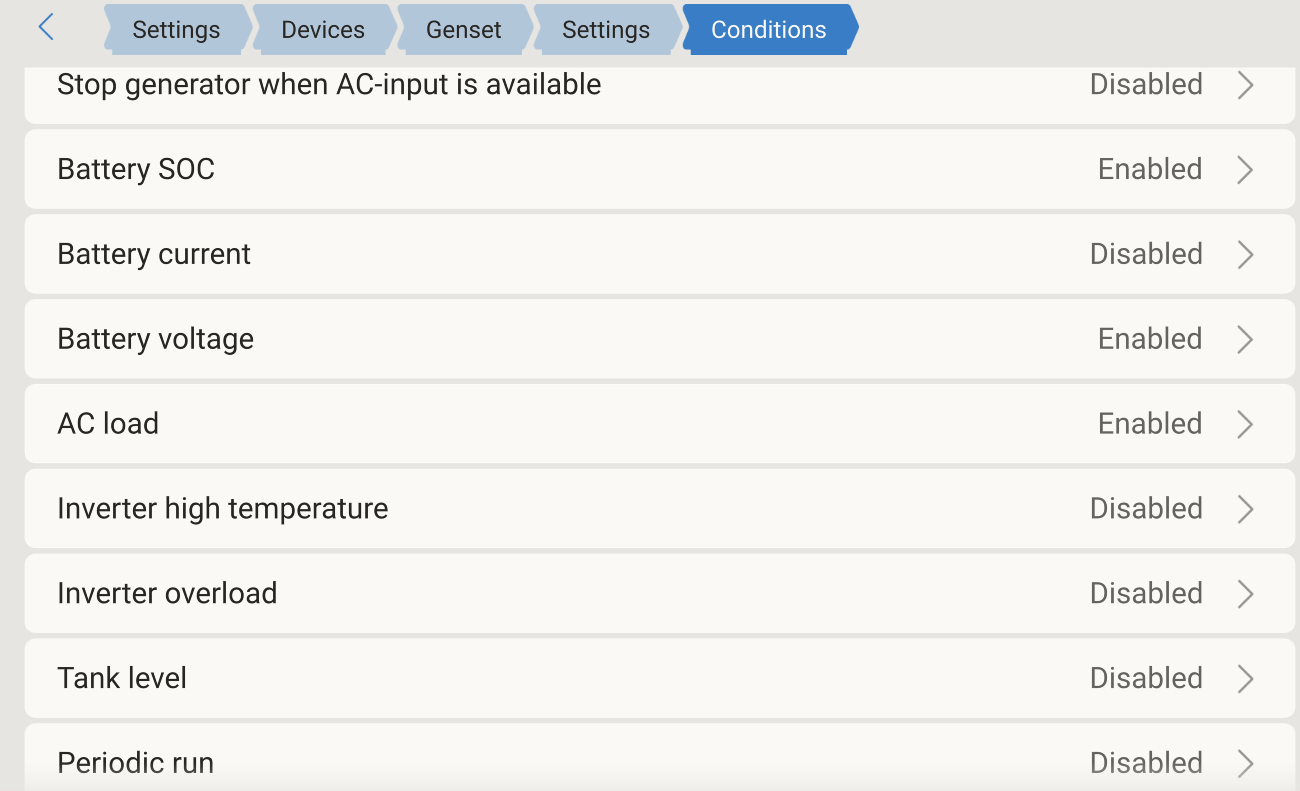

Here is a screenshot of some of the triggers available:

[image: image.png]

On Sun, Apr 12, 2026 at 10:22 AM Zeke Yewdall via RE-wrenches <
re-wrenches at lists.re-wrenches.org> wrote:

> The ability to stop the generator when the sun comes out is one advantage
> of the AIO's over older equipment (at least the Midnite AIO can do that,
> not sure about others).  That was always super annoying when people didn't
> have a large enough battery bank to make it till morning, and the generator
> would start at 5am, and fully recharge the batteries, leaving the solar
> with nothing to do when it did finally come out.  I had one customer build
> his own PLC controller just to accomplish that on an outback system.
>
> I agree, having a quiet time that still starts the generator, just at a
> lower SOC, could be a good option.
>
> Zeke
>
> _______________________________________________
> List sponsored by Redwood Alliance
>
> Pay optional member dues here: http://re-wrenches.org
>
> List Address: RE-wrenches at lists.re-wrenches.org
>
> Change listserver email address & settings:
> http://lists.re-wrenches.org/options.cgi/re-wrenches-re-wrenches.org
>
> There are two list archives for searching. When one doesn't work, try the
> other:
> https://www.mail-archive.com/re-wrenches@lists.re-wrenches.org/
> http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org
>
> List rules & etiquette:
> http://www.re-wrenches.org/etiquette.htm
>
> Check out or update participant bios:
> http://www.members.re-wrenches.org
>
>

--



Mac Lewis

*"Yo solo sé que no sé nada." -Sócrates*
