[RE-wrenches] Fwd: Re: Cantilevered array

[drake.chamberlin at redwoodalliance.org]

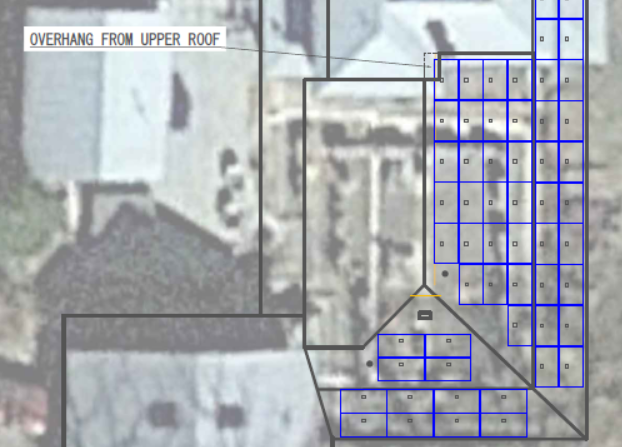

Here is a larger snip of the situation.

Label says overhang from upper roof.

_Drake Chamberlin_

_Athens Electric LLC_

_Ohio Electrical Contractor's License 44810_

_NABCEP Certified PV Installation Professional_

---

On 2024-01-12 07:29, Jason Szumlanski wrote:

> Are you sure that's what you're looking at? To me, that looks like there was an addition made to the house, and maybe it's a multi-pitch roof. That lower part might be a covered wrap-around porch.
>
> Jason Szumlanski
> Principal Solar Designer | Florida Solar Design Group
> NABCEP Certified Solar Professional (PVIP)
> Florida State Certified Solar Contractor CVC56956
>
> On Thu, Jan 11, 2024 at 5:59 PM Drake Chamberlin via RE-wrenches <re-wrenches at lists.re-wrenches.org> wrote:
>
>> I was given a drawing, produced by a very large solar company, showing the array cantilevered over the edge of the roof by several feet.
>>
>> Notice how the array hangs out over the lawn for several feet. Is there anyway that this is a legitimate way to mount modules?
>>
>> Thanks,
>>
>> Drake
>>
>> _Drake Chamberlin_
>>
>> _Athens Electric LLC_
>>
>> _Ohio Electrical Contractor's License 44810_
>>
>> _NABCEP Certified PV Installation Professional_
>>
>> --
