[RE-wrenches] Cummins 13-kW to Schneider AGS

[Dave Angelini Offgrid Solar]

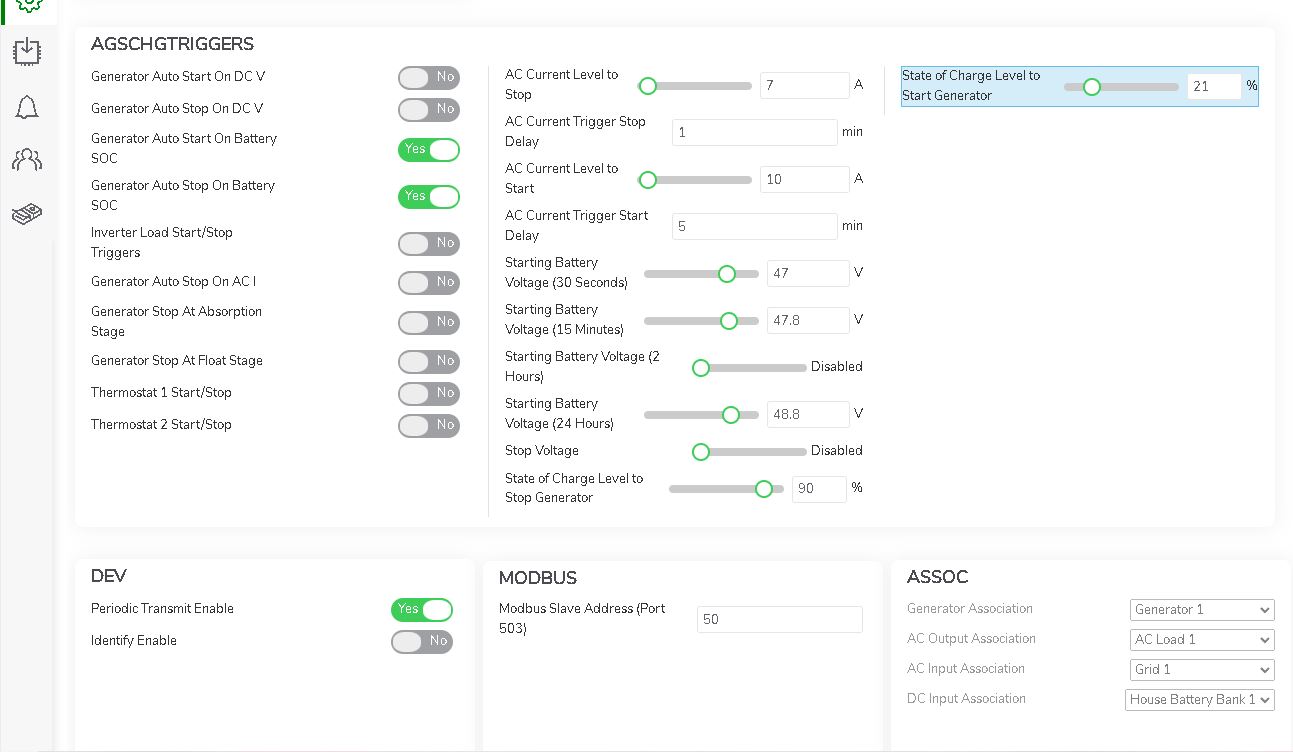

Probably a type 14. The one below is closed loop Soc, triggers about 20%
soc.

Dave Angelini Offgrid Solar
"we go where powerlines don't"
    [1]https://offgridsolar1.com/ [2]  [1]
e-mail  offgridsolar at sti.net
text 209 813 0060

On 2023-11-13 11:57 am, Kevin Pegg via RE-wrenches wrote:

> Hi Matt,
>
> Which specific model? I recently figured out the wiring for the Cummins
> CMQG 6kW. Find it easiest to order the external 5 pin switch and wiring
> harness and splice into that.
>
> Kevin
>
> -----Original Message-----
> From: RE-wrenches <re-wrenches-bounces at lists.re-wrenches.org> On Behalf
> Of Matthew Sherald via RE-wrenches
> Sent: November-13-23 10:28 AM
> To: RE-wrenches <re-wrenches at lists.re-wrenches.org>
> Cc: Matthew Sherald <matt at getpimby.com>
> Subject: [RE-wrenches] Cummins 13-kW to Schneider AGS
>
> Hello Friends,
>
> I'm stuck trying to wire a 13-kW Cummins LP gen to a Schneider AGS. If
> someone has a quick explanation or diagram that they would be willing
> to share I would be most grateful.
>
> Many Thanks!
>
> -Matt Sherald
>
> Sent from my iPhone
