[RE-wrenches] Line Side Tap

[Christopher Warfel]

The intent of the line side tap, was to allow larger pv systems to
interconnect to the SE conductors and not have to consider the service
panel. So, I agree with others that the service panel has no
consideration for what you are doing. The panel is protected by the MSP
Breaker.  Chris

On 10/12/2023 8:06 PM, Drake Chamberlin via RE-wrenches wrote:

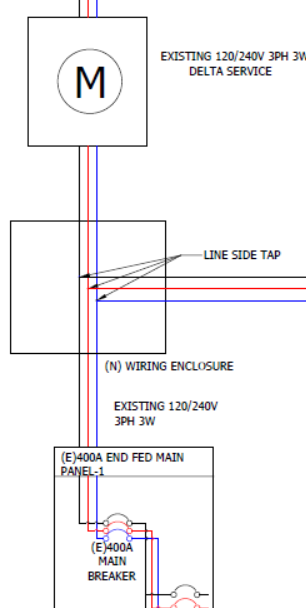

> We have a design where the conductors will come out of a 400 A meter
> base to a junction box. Splices in the box will allow for the PV to
> feed the meter.
> A maximum of 312 Amps can come from the inverters to feed the grid.
>
> The loads on the existing main service are significantly less than
> 200A. The service is rated at 200 A, 3 phase delta.
>
>
>
> The conductors from the meter would be rated at 400 A to the splice,
> as would the conductors to the photovoltaic system. The conductors to
> the existing service would be downsized to 200 A.
>
> We were told that the bus bar rating of the service must also be 400
> A, even though the output of the PV does not feed through that box. Is
> there a rule that says this? What would be the logic?
> Thank you,
> Drake
>
> /Drake Chamberlin/
>
> /Athens Electric LLC/
>
> /Ohio Electrical Contractor’s License 44810/
>
> /NABCEP Certified PV Installation Professional/
>
>
