[RE-wrenches] Rapid Shutdown
Starlight Solar Power Systems
larry at starlightsolar.com
Tue Mar 15 15:12:42 PDT 2016
James,
Sorry for the confusion: these are not Midnite parts. These are Gigavac solenoids. They come with high efficiency coils, 2.8 Watts holding for the 48 Vdc, 2.9 Watts for the 800 Vdc. We are using quite a few each month so I buy at 50+ piece volume pricing. see attachments.
Larry Crutcher
Starlight Solar Power Systems
On Mar 15, 2016, at 2:19 PM, James Jefferson Jarvis <jj at aprsworld.com> wrote:
On 3/15/2016 3:57 PM, Starlight Solar Power Systems wrote:
> I thought this idea (attached) was a simple solution for array and
> battery rapid shutdown using a Classic controller and solenoids. The PV
> solenoids are 350 amp continuous @ 700 Vdc, and 400A @ 48 volts for the
> battery. Cost is about $120 each.
Larry,
Any details on these $120 solenoids? Are they latching coil, or will we be burning another 5 to 20 watts per device to keep them closed?
I did a quick search of Midnite's site and got no relevant hits with relay, solenoid, or contactor as search terms.
Thanks,
-James Jefferson Jarvis
APRS World, LLC
+1-507-454-2727
www.aprsworld.com
_______________________________________________
List sponsored by Redwood Alliance
List Address: RE-wrenches at lists.re-wrenches.org
Change listserver email address & settings:
http://lists.re-wrenches.org/options.cgi/re-wrenches-re-wrenches.org
List-Archive: http://www.mail-archive.com/re-wrenches@lists.re-wrenches.org/maillist.html
List rules & etiquette:
www.re-wrenches.org/etiquette.htm
Check out or update participant bios:
www.members.re-wrenches.org
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org/attachments/20160315/ed35ca3e/attachment-0002.html>
-------------- next part --------------
A non-text attachment was scrubbed...

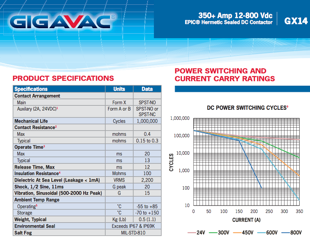

Name: Screen Shot 2016-03-15 at 2.42.20 PM.png
