[RE-wrenches] module hot spots

boB at midnitesolar.com boB at midnitesolar.com
Sun Nov 22 10:52:40 PST 2015


On 11/22/2015 9:43 AM, Marco Mangelsdorf wrote:
>
> I’m pleased with my Flir 4…cost me about $1,000.
>
> marco
>

I looked at the FLIR 4 and the similarly priced Fluke and went with
the FLIR based on the comparisons.

I would like to check out Dan's $250 Android solution.

In the end, it probably doesn't make a big difference if the cells
are not well matched in temperature but that I-V curve is
very revealing to show if there is really a problem or not.
That is, unless it is SO hot that it degrades too quickly.
If one hot cell were to actually "burn out" and open up
before the performance warranty, I have a feeling that
the manufacturer, (if still in business), might not honor that
warranty for a defect like this.  The  I-V test would be
good to check before the manufacturing defect warranty
is up.  Those warranties are usually what ?....  Around 10 years ?

BTW, I checked our modules' temperature difference while
short-circuiting the module so there would be maximum
current.

boB




> *From:*RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org]
> *On Behalf Of *Bill Loesch
> *Sent:* Sunday, November 22, 2015 2:21 AM
> *To:* RE-wrenches
> *Subject:* Re: [RE-wrenches] module hot spots
>
> Hi Marco, boB, et al,
>
> Thermal imaging is so useful for so many diagnosis. How did you choose
> the equipment you use without buying more than you use/need? Satisfied
> with your current machine or would you recommend something else?
>
> TIA,
>
> Bill Loesch
> Solar 1 - Saint Louis Solar
> 314 631 1094
>
> On 11/21/2015 11:48 PM, boB at midnitesolar.com
> <mailto:boB at midnitesolar.com> wrote:
>
>
>     I have looked at several modules (not SunPower though) and I see
>     this much temperature
>     variation between cells BUT I have not seen anything like your
>     picture, with only one cell
>     hotter.  What I have seen is hotter and cooler cells more or less
>     spread out
>     semi-randomly.  Not sure if your example is normal or not for Sun
>     Power ?
>

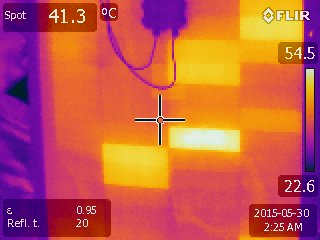

>     Here is one example from my library of FLIR pix.
>     A thermal imaging camera sure sheds light
>     on many different things !
>     boB
>
>
>
>
>
>     On 11/21/2015 9:31 PM, Marco Mangelsdorf wrote:
>
>         Hello all,
>
>         I’m seeing hot spots on some of the SunPower modules we
>         installed circa 2007-2010.  (I’ve been a SunPower dealer since
>         2005.)
>

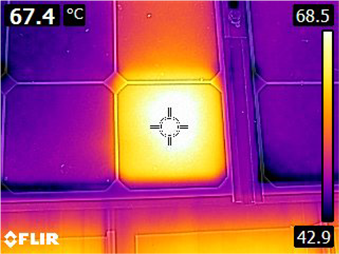

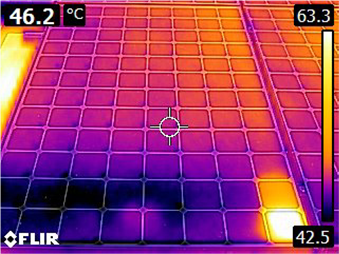

>         Sometimes theses cells are 20-30 degrees C hotter than the
>         surrounding cells and it’s especially striking while using a
>         Flir IR camera.  Check out the two images below.
>
>         cid:image001.png at 01D12070.CBCC60D0cid:image002.png at 01D12070.CBCC60D0
>
>         Do many of you come across hot spotted mods?  Anyone know of
>         any papers out there on hot spots and the hit on performance
>         and reliability?
>
>         Mahalo,
>
>         marco
>
>
>
>
>         ________
>
>
>
