[RE-wrenches] module hot spots

[Marco Mangelsdorf]

I'm pleased with my Flir 4.cost me about $1,000.



marco



From: RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] On
Behalf Of Bill Loesch
Sent: Sunday, November 22, 2015 2:21 AM
To: RE-wrenches
Subject: Re: [RE-wrenches] module hot spots



Hi Marco, boB, et al,

Thermal imaging is so useful for so many diagnosis. How did you choose the
equipment you use without buying more than you use/need? Satisfied with your
current machine or would you recommend something else?

TIA,



Bill Loesch
Solar 1 - Saint Louis Solar
314 631 1094

On 11/21/2015 11:48 PM, boB at midnitesolar.com wrote:


I have looked at several modules (not SunPower though) and I see this much
temperature
variation between cells BUT I have not seen anything like your picture, with
only one cell
hotter.  What I have seen is hotter and cooler cells more or less spread out
semi-randomly.  Not sure if your example is normal or not for Sun Power ?

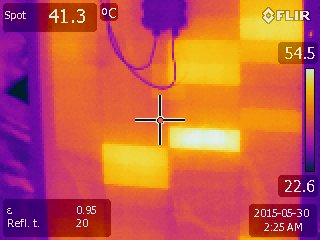

Here is one example from my library of FLIR pix.
A thermal imaging camera sure sheds light
on many different things !
boB





On 11/21/2015 9:31 PM, Marco Mangelsdorf wrote:

Hello all,



I'm seeing hot spots on some of the SunPower modules we installed circa
2007-2010.  (I've been a SunPower dealer since 2005.)

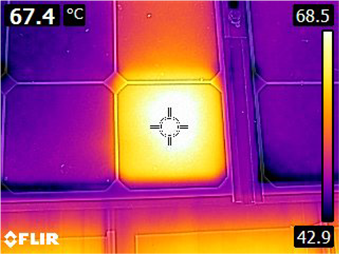

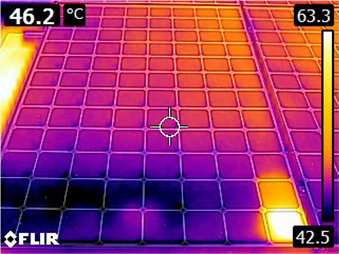

Sometimes theses cells are 20-30 degrees C hotter than the surrounding cells
and it's especially striking while using a Flir IR camera.  Check out the
two images below.



cid:image001.png at 01D12070.CBCC60D0cid:image002.png at 01D12070.CBCC60D0



Do many of you come across hot spotted mods?  Anyone know of any papers out
there on hot spots and the hit on performance and reliability?



Mahalo,

marco
