[RE-wrenches] Corrugated Roof Brackets

Mike Nelson mdelectricsolar at gmail.com
Fri Mar 6 12:50:45 PST 2015

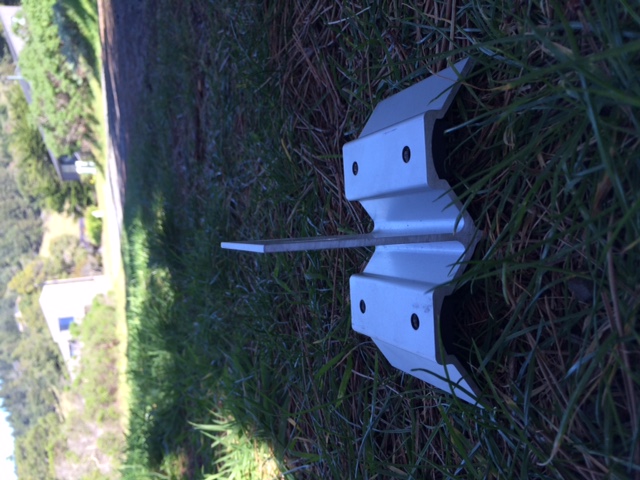

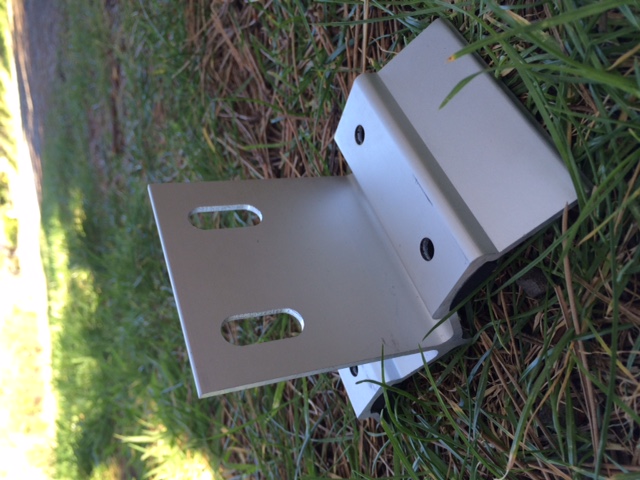

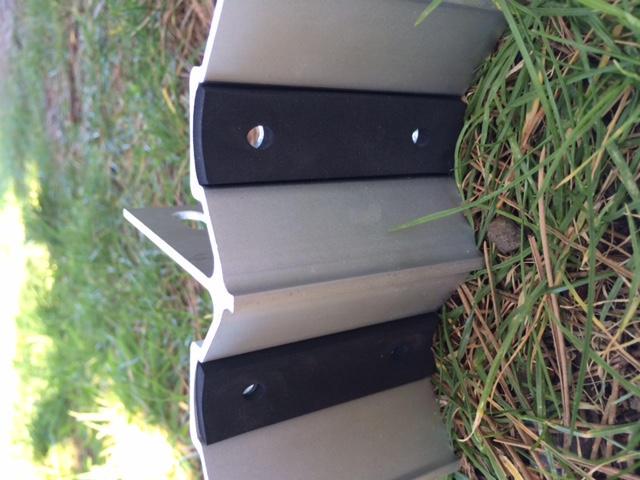

Here is the sunmodo corrubracket, just received and am installing next week, looks and feels like a quality product. Again, mounting holes on TOP of the corrugation. I am supplying my own stainless steel hex head screws with gaskets.

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image1.JPG
Type: image/jpeg
Size: 131227 bytes
Desc: not available
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org/attachments/20150306/c41a2285/attachment-0006.jpe>
-------------- next part --------------


-------------- next part --------------
A non-text attachment was scrubbed...
Name: image2.JPG
Type: image/jpeg
Size: 121552 bytes
Desc: not available
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org/attachments/20150306/c41a2285/attachment-0007.jpe>
-------------- next part --------------


-------------- next part --------------
A non-text attachment was scrubbed...
Name: image3.JPG
Type: image/jpeg
Size: 120482 bytes
Desc: not available
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org/attachments/20150306/c41a2285/attachment-0008.jpe>
-------------- next part --------------



Michael D Nelson
MD Electric & Solar, Inc.
707-684-0064 mobile
707-884-1862 office
www.mdelectricsolar.com
Sent from my iPhone

> On Mar 6, 2015, at 12:40 PM, Luke Christy <sgsrenewables at gmail.com> wrote:
>
> Adam,
> I'm a big fan of the Corrubracket. We've installed hundreds of them on a whole range of different types of corrugated roofing, with zero problems so far.
> The peel-and stick sealant that comes attached to the bracket works really well, but it can get pulled aside as the fastener goes through and grabs the sealant. I always try to check  the bracket after attachment to make sure that the sealant is fully between the bracket and the roofing, and often I will daub polyurethane caulking on top of the fasteners.
>
> The only thing I don't like is the price point and the fact that the span of the four mounting holes often necessitates some form of blocking.
>
> -Luke
>
>
> Luke Christy
>
> NABCEP Certified PV Installation Professional?: Certification #031409-25
> NABCEP Certified Solar Heating Installer?: Certification #ST032611-03
> CoSEIA Certified PV Installer
>
> Solar Gain Services, LLC
> PO Box 531
> Monte Vista, CO. 81144
> SGSRenewables at Gmail.com
> 719.588.3044
> www.sgsrenewables.com
>
>
>> From: RE-wrenches [mailto:re-wrenches-bounces at lists.re-wrenches.org] On
>> Behalf Of AE Solar
>> Sent: Thursday, March 05, 2015 8:01 AM
>> To: RE-wrenches
>> Subject: [RE-wrenches] Corrugated Roof Brackets
>>
>>
>>
>> Hey Wrenchers,
>>
>> Anyone have feedback or preferences on mounting systems for corrugated
>> roofs? I'm looking at the S-5! CorruBracket
>> <http://www.s-5.com/clamps/index_2624.cfm> . Its for a very small system on
>> a hunting cabin. The pitch is probably about 20 degrees and and I'm
>> concerned about leaks over time. Any recommendations are appreciated. Thanks
>>
>> Adam
>>
>>
>>
>>
>> Adam Katzman
>> Autonomous Energies
>> 4872 State Route 9G
>> Germantown NY, 12526
>> www.autonomousenergies.com
>> (518) 567-1468
>>
>> ******************************************
>
>
>
>
>
>
>
>
>
>
