[RE-wrenches] Radian-Mate3s

[Tuss, Lones]

Hi William

The Mate 3S can be inserted directly into the left most pcb in the Radian

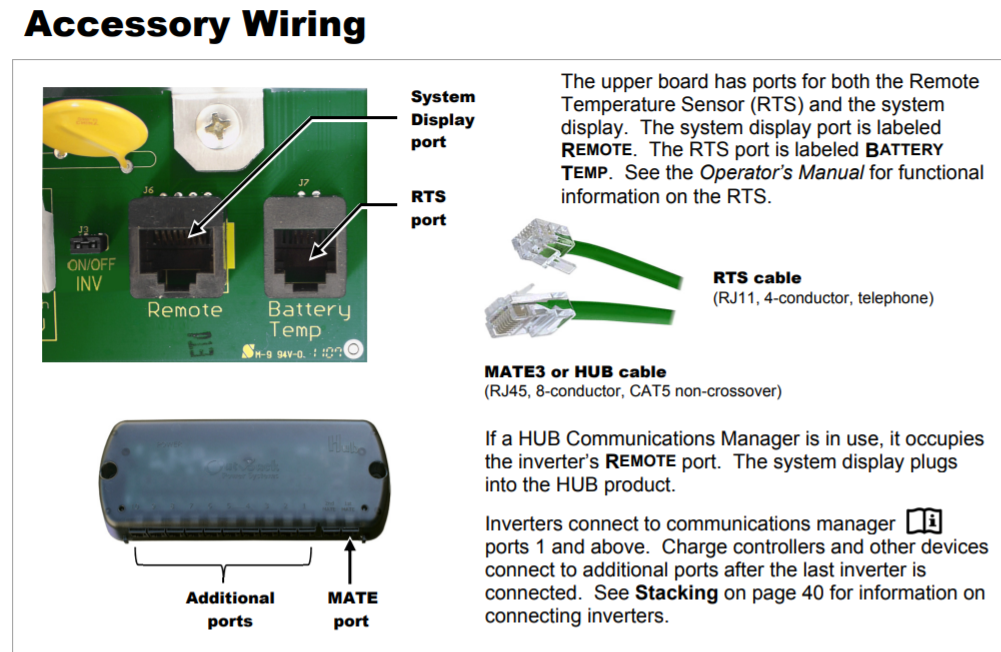

Here is a picture from  Page 33  in the manual

Below

https://outbackpower.com/downloads/documents/inverter_chargers/radian_8048a_4048a/gs_8048a_4048a_install.pdf



[cid:image001.png at 01D7D633.C00CA7D0]







-----Original Message-----
From: RE-wrenches <re-wrenches-bounces at lists.re-wrenches.org> On Behalf Of William Miller
Sent: Tuesday, November 9, 2021 11:05 AM
To: RE-wrenches <re-wrenches at lists.re-wrenches.org>
Subject: [RE-wrenches] Radian-Mate3s



CAUTION: This email originated from outside of the Company. Do not click links or open attachments unless you recognize the sender and know the content is safe.





Friends:



If I have a Mate3s and no other Outback device, can I connect the Mate3s directly to a Radian without a hub?



Thanks in advance.



William Miller
