[RE-wrenches] Exploding RSD unit

[Jeff Irish]

What modules were you using?  Any chance their current or voltage exceeded
the device rating?

On Thu, Aug 26, 2021 at 12:38 PM Carl Adams <cadams at sunrocksolar.com> wrote:

> Jeremy,
> We have seen this with the APSmart devices.  One melted and did not cause
> damage to the panel. The other destroyed the panel.
>
> With Kind Regards
> SunRock Solar
> Carl Adams
>
>
>
> On Thu, Aug 26, 2021 at 11:40 AM Jeremy Coxon <jcoxon at sunwindpowerinc.com>
> wrote:
>

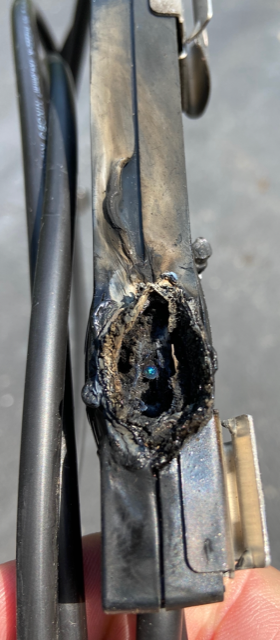

>> Has anyone else had an APsmart RSD unit explode in the first few weeks of
>> service?  See attached pictures (hopefully you’ll be able to see them).
>>
>> This was a newly installed array with SMA 7.6.  System started up fine,
>> then the next morning would not operate unless inverter was power cycled.
>> It would then start up and run fine until the next morning when the same
>> thing would happen.  We went over the array with fine tooth comb and
>> verified 'turn on' signal at each unit using RSD Eye tool - no signs of
>> anything wrong. Spent ~4 hrs on tech support with SMA who then sent
>> replacement inverter.  Upon install of new inverter same result.  Then AP
>> said we needed to install their 'outdoor unit' (external signal injector)
>> which took weeks to arrive, further inflaming the customer.  Upon
>> installation of the outdoor unit the problem persisted.  Then things got
>> really weird - inverter would attempt to start up and went into “unstable
>> operation mode” and then it finally threw an arc fault code (turned out to

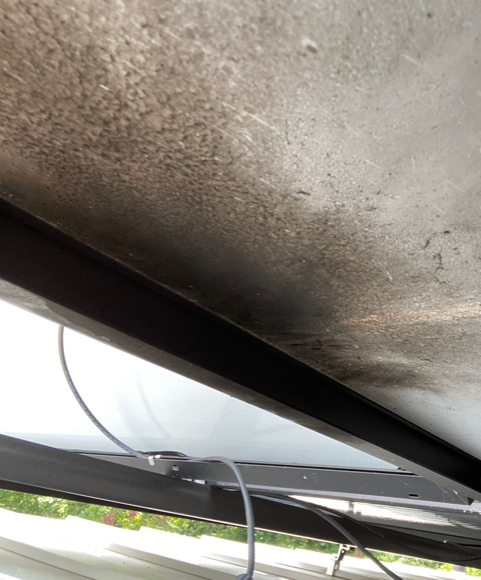

>> be a real one for a change).  Went back up on roof and found charcoal on
>> roof deck under a panel.  Luckily this was on a brand new metal roof and
>> not an asphalt shingle roof with leaves or squirrel nests under it!  We
>> spent a LOT of time on this problem, got both manufacturers on an email
>> thread to help us diagnose and inform them etc, before finding the actual
>> cause and received zero compensation from AP for our time, instead just
>> lots of excuses and finger pointing.
>>
>> We also lost the potential of a LOT of referral business due to total
>> loss of confidence in our industry by this architect client.  I have waited
>> a few weeks before sending this note to let my blood stop boiling.  A piece
>> of SAFETY equipment intended for fire fighter safety should NOT be an
>> ignition source.  I have contacted Bill Brooks with this info in hopes that
>> he can inform the Code making panel and that someone will end this
>> madness.  Module level RSD via external components that are essentially
>> undiagnosable black boxes that double the number of connections in an array
>> results in the opposite outcome of the problem that they are intended to
>> solve - IMO.  We will be opposing any AHJ who requires us to use these
>> devices going forward.  I welcome your comments and am interested to know
>> if anyone else has had any similar experiences?
>>
>>
>>
>>
>>
>> Best Regards,
>> Jeremy Coxon NABCEP # 091308-21
>> MWBE Certified
>>
>>
