Hi Bill

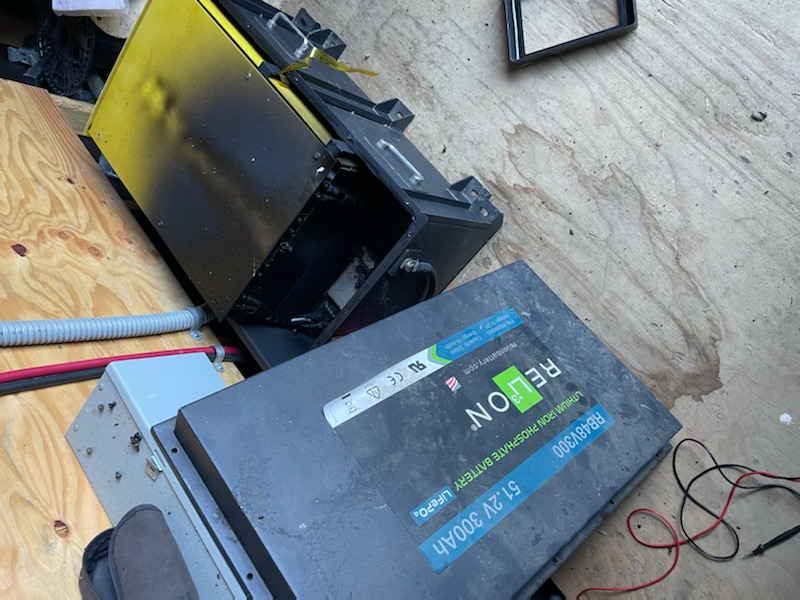

I guess the photo I included didn’t work. I’ll try again as it shows the battery model etc. this is a 300 amp hr 48v Relion that has fasteners to remove the top.
The volts were 5vdc, and had been working that day.
It’s inside, in a relatively cool, sub 85f condition, dry space.
Age is pretty new but no specs on that.
As to over under charge voltage, rate the BMS is supposed to take care of that.

No contacts or cables were touched or disconnected prior to top removal. And in the photo is clear that it’s designed such that top install removal won’t touch any conductors or batteries.

I’m under no illusions that everything we do or  work with is safe. My comment is based in that  I continue to hear that LFP can’t fail and explode.
Something in there did. And I’m pretty sure electronics such as a Bms doesn’t have anything in it that could explode like
This.

I’ll try again to send the photo.





> On Jun 15, 2021, at 10:37 PM, frenergy <frenergy at psln.com> wrote:
>
> Very few details...What does it mean "he opened it up"  I would even know how to do that with the L-ions I've been around, seems like its something a manufacturer should be doing.  Temperature?  charge rate? recent usage history? Age? Was it disconnected? Did contacts touch a conductor?........
>
>             You can probably get water to explode if you abuse it just right.
>
> Bill
>
> Feather River Solar Electric
> Bill Battagin, Owner
> 4291 Nelson St.
> Taylorsville, CA 95983
> 530.284.7849
> CA Lic 874049
> www.frenergy.net
> On 6/15/2021 8:14 PM, Jay wrote:
>> A fellow installer sent me this just now.
>> The battery wasn’t working, 5v.
>> He opened it up and it exploded when he opened it. The lid hit the roof.
>> Fortunately no one was injured.
>>
>> Anyone know what to do with this?  IE recycling?
>>
>> And just another example of non explosive lithium batteries exploding
>>
>> Jay
>> Peltz power.
