[RE-wrenches] grundfos SQFlex question

[Nick A Lucchese]

This one?



> On Jun 15, 2021, at 2:15 PM, jay <jay.peltz at gmail.com> wrote:
>
> Does anyone have or know where I can get the pump curves with voltages?
>
> I’m trying to limit flow by lowering the voltage, which I know works, but I can’t find the output vs voltage charts.
>
> And does anyone know if Lorentz is still active in the USA?
> The last time i checked their controller had the ability for flow/speed adjustment.
>
> Thanks
>
> jay
>
> peltz power
>
>
> _______________________________________________
> List sponsored by Redwood Alliance
>
> Pay optional member dues here: http://re-wrenches.org
>
> List Address: RE-wrenches at lists.re-wrenches.org
>
> Change listserver email address & settings:
> http://lists.re-wrenches.org/options.cgi/re-wrenches-re-wrenches.org
>
> There are two list archives for searching. When one doesn't work, try the other:
> https://www.mail-archive.com/re-wrenches@lists.re-wrenches.org/
> http://lists.re-wrenches.org/pipermail/re-wrenches-re-wrenches.org
>
> List rules & etiquette:
> http://www.re-wrenches.org/etiquette.htm
>
> Check out or update participant bios:
> http://www.members.re-wrenches.org
>

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches_lists.re-wrenches.org/attachments/20210615/53a3d7c9/attachment.htm>
-------------- next part --------------
A non-text attachment was scrubbed...

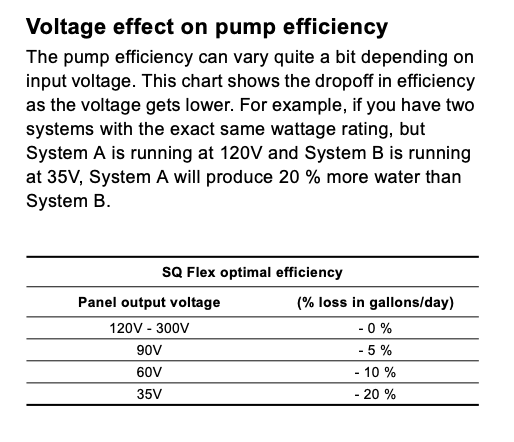

Name: Grundfos SQFlex efficiency vs voltage.png
Type: image/png
Size: 54851 bytes
Desc: not available
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches_lists.re-wrenches.org/attachments/20210615/53a3d7c9/attachment.png>
