[RE-wrenches] seeking 3ph battery based/backed inverters and experiences
Dave Angelini Offgrid Solar
offgridsolar at sti.net
Thu Apr 22 12:26:09 EDT 2021

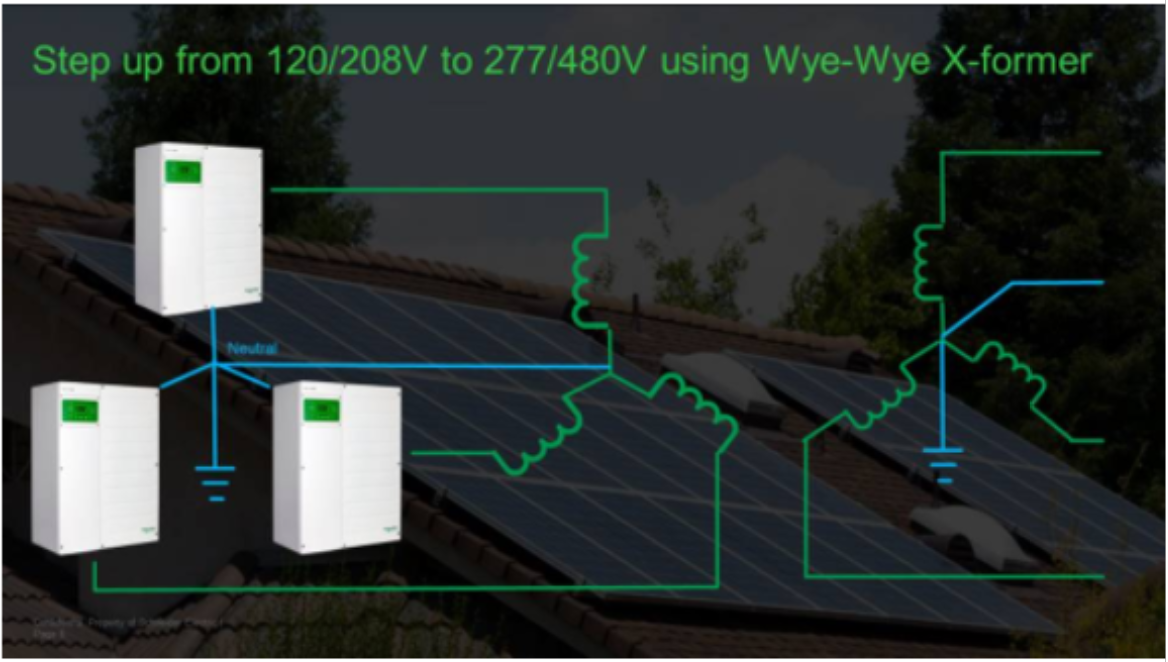

I missed the size of the power system required here. Below is a diagram
from Schneider that can be scaled up. All components UL listed!
I assume
one can do the same with Radians.
Dave Angelini Offgrid Solar
"we go
where powerlines don't"
http://members.sti.net/offgridsolar/ [1]
e-mail
offgridsolar at sti.net [2]
text 209 813 0060
On Thu, 22 Apr 2021 09:10:51
-0600, Mac Lewis wrote: I would look closely at Growatt. One thing
easy to overlook, with 48V batteries especially, is how difficult it is to
have BOS components that are UL listed on the DC side. This is an advantage
of the cluster topology as opposed to a central inverter topology. There
are some good custom options for current >1000A but it depends on the AHJ.
Let us know where you end up in this. Thanks
On Thu, Apr 22,
2021, 9:04 AM Jerry Shafer wrote: Wrenches Outback FXR inverters has a
three phase option, Solark can also do this. Delta has 125 k 480 vac unit
also
On Wed, Apr 21, 2021, 7:12 AM Jay wrote: Hi Christopher
I'm not sure what power your looking for. Try
https://www.princetonelec.com/dela-inverter [5] There are others too
None of the normal ( OB, Schneider etc) will do 208-480. Only 120-208 Jay
On Apr 20, 2021, at 4:15 PM, Chris Schaefer wrote:
G'day All, I'm
not familiar with any 3 ph 208 to 480vac battery backup inverter
manufacturers. So if you could point me in the right direction on who you
know and better yet who you've had experience with, good, bad or otherwise,
that would be extremely helpful. Happy 420 to all my fellow Solar Bozo's,
Christopher-
Chris Schaefer's
Tel/Fax 585-229-2083 or Cell 585-748-1870
5115 South Hill Road ~ Canandaigua New York 14424
_www.solarandwindfx.com
[8] ~ E-mail: chris at solarandwindfx.com [9]_
Thomas Jefferson, the author
of our great Constitution, once said, "democracy" will cease to exist when
you take away from those who are willing to work and give to those who
would not." _______________________________________________
