[RE-wrenches] Fwd: Magic PV cell

[Jerry Shafer]

Wrenches
To be sure you will need an IR Camera but yes it does happen one cell is
failing and has become an energy consumer instead of a supplier, you will
see a discolored cell and to the touch it will be noticeably hotter than

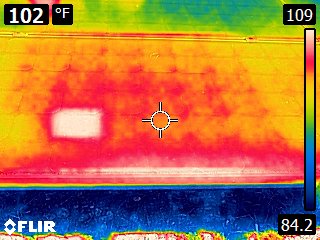

the surrounding cells, I have seen this with several manufactures. I
attached a pic of a module that was too hot to put your hand on on the
failed cell. It may de difficult to get manufacturer assistance  without a
IV curve test on each module. You also should look at the back sheet as it
may be discolored or even burned.
Jerry Shafer
NABCEP PV Inspector


On Fri, Jan 8, 2021 at 11:23 AM Ray <ray at solarray.com> wrote:

> HI All;
> I'm forwarding this from a friend and client of mine.  I need to check to
> see what modules these are, but it looks like we might have a high
> resistance cell?  Is this something that may go away once the modules warm
> up, or is this an impending failure?
>
> Thanks,
>
> Ray Walters
> Remote Solar
>
>
> -------- Forwarded Message --------
> Subject: Magic PV cell
> Date: Fri, 8 Jan 2021 05:29:24 -0700
>
>
>
>
>
>
>

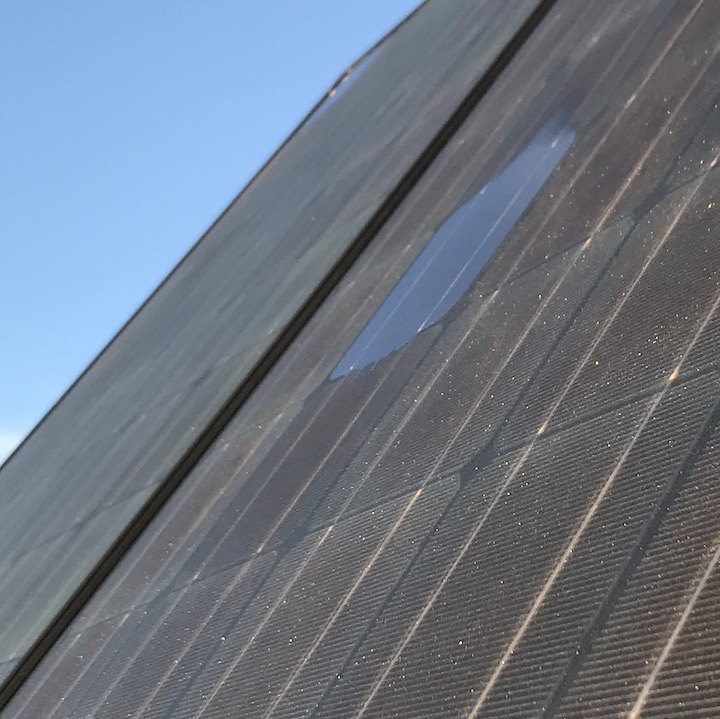

> One cold morning on my way to work I noticed that both panels were covered
> in light frost, except for this one cell.
>
> Isn’t that odd?
>
>
