[RE-wrenches] Mixing Outback 100 series C with old FX system

[Tuss, Lones]

Hello All
Hi William
I just tried my Mate3S in to my FM100AFCI and it does see the FM100 and all the screen are available.

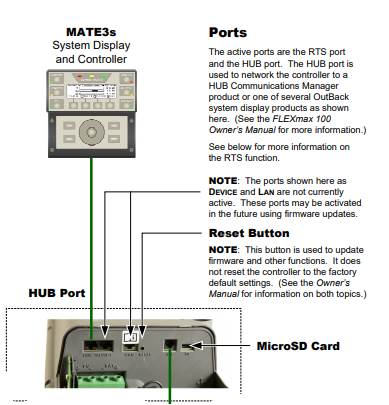

Here is a screen shot from the Quick Start Guide
http://www.outbackpower.com/downloads/documents/charge_controllers/flexmax_100_afci/fm100_afci_qsg.pdf
There are 2 ports on the FM both will accept a cat5 comm cable use the left port.


[cid:image002.jpg at 01D6A5FF.E10C46D0]


From: William Miller <william at millersolar.com>
Sent: Friday, October 16, 2020 9:29 PM
To: RE-wrenches <re-wrenches at lists.re-wrenches.org>
Cc: Tuss, Lones <ltuss at outbackpower.com>
Subject: Mixing Outback 100 series C with old FX system

Friends:

I installed a Flexmax 100 today in a dual FX system circa 2003.  The system has an oval Mate and it is no surprise the old Mate does not communicate with the FM100 as this was made clear from the literature.

I plugged in a new Mate3S directly into the FM100 hoping to connect and see data, but alas, the display was almost entirely blank.  It only showed the battery voltage which was 500 volts, which I guess is a promotion.

I then tried plugging the FM100 into a Hub 10.3 and then into the Mate3S.  Still no display.

I’d like to field-check the FM100 with a Mate3 or 3S but don’t know how.  It used to be you could plug an MX60 into a Mate and get some semblance of normality displayed.  Can I swap out the old hub with a 10.3 with the inverters connected and get FM100 data?  Any ideas out there?

Thanks in advanced.

William

PS:  The FM100 is charging so that is not an issue.

Wm

Miller Solar
17395 Oak Road, Atascadero, CA 93422
805-438-5600
www.millersolar.com<https://protect2.fireeye.com/v1/url?k=c8841d8c-961a1ba9-c8871407-869600a3c855-2b3b50209d113069&q=1&e=f87c1d45-2969-479e-80be-c026f9260573&u=http%3A%2F%2Fwww.millersolar.com%2F>
CA Lic. 773985
