[RE-wrenches] old breaker box rating

[James Rudolph]

Jay,

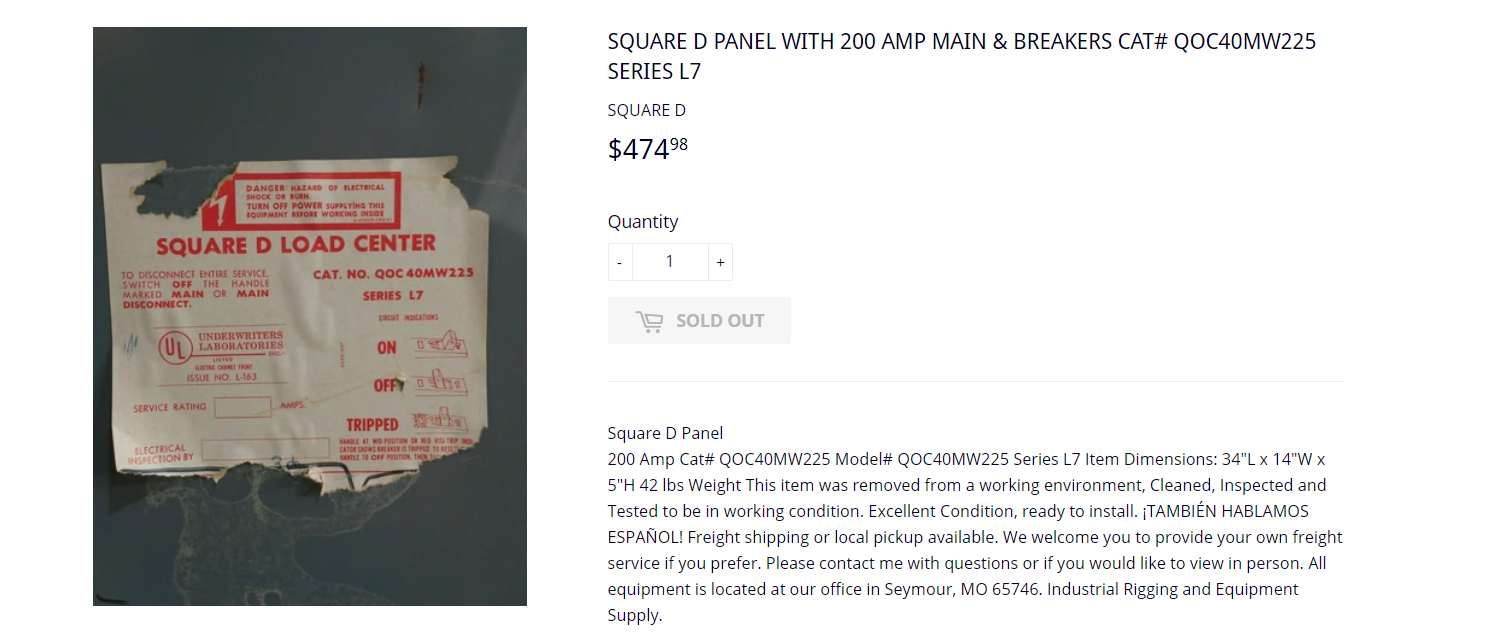

I found this photo of the label for this panel. It looks like the main is
200a and the buss is 225a The last number usually denotes buss bar rating.
[image: image.png]






James B. Rudolph

Independent Energy C-36080

ES #10816

NABCEP Certified PV Installer since 2009  #091209-155

C. 808.313.9701










On Sat, Oct 3, 2020 at 6:22 PM jay <jay.peltz at gmail.com> wrote:

> Hi All,
>
> I’ve got a old sq D model QOC 40MW225 SERIES L7
> I can’t find any literature on it.
>
> I’m just trying to confirm that the buss bar is rated for 225 amps?
>
> Anybody have some data or know where to find it?  So far I’ve struck out.
>
> thanks
>
> jay
>
>
