Andrew,

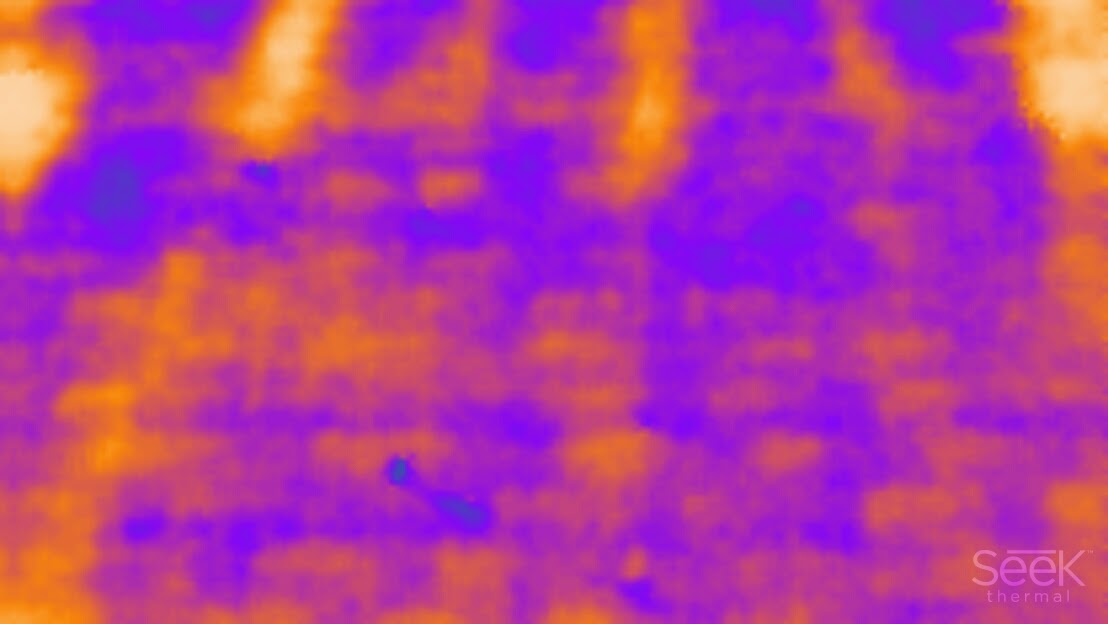

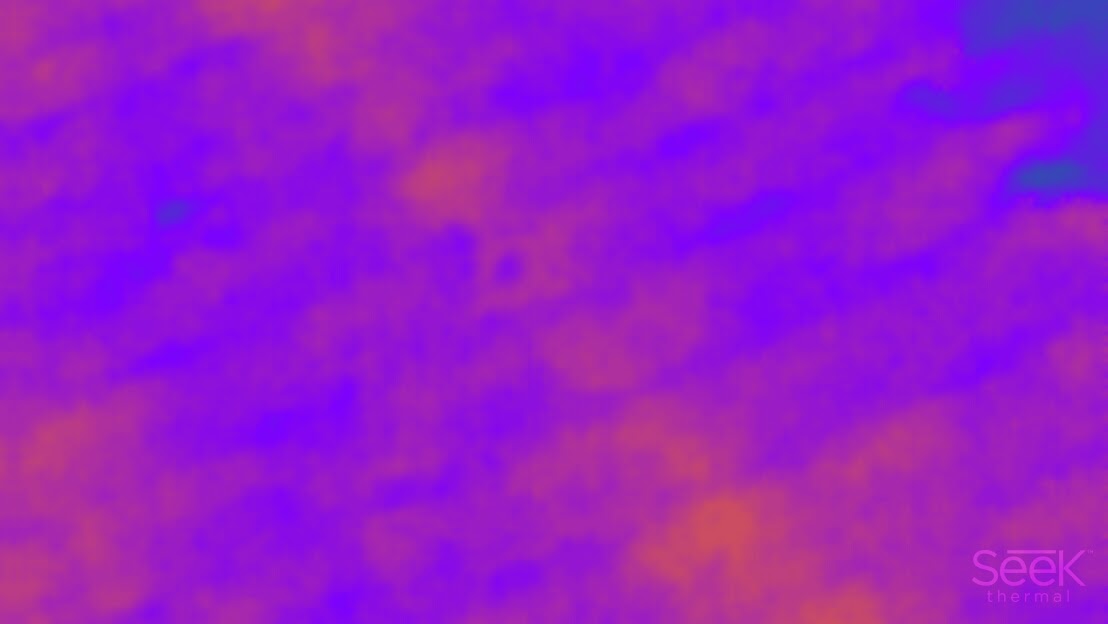

These photos might not make much sense without context, but they were taken with Seek Thermal’s IR camera for an Android device. I now use the FlirOne

It was an exceptionally hot day, which helped the contrast. I’d say this was good enough to identify that there were rafters present, but it wasn’t good enough to identify rafter location with precision (e.g., identify the edge of a rafter to within +/- ½”). I play with this whenever I get a chance, and I’ve never had better results with anything below the laboratory-grade equipment we use.

Best Regards,
Isaac Opalinsky | Director, Training & Field Enablement
office 443-569-3476 | mobile 443-277-6286 | isaac.opalinsky at sunpower.com<mailto:isaac.opalinsky at sunpower.com>
[sp_2014_logo_black_orange_CMYK-01]

From: RE-wrenches <re-wrenches-bounces at lists.re-wrenches.org> On Behalf Of Ray
Sent: Tuesday, August 04, 2020 2:37 PM
To: re-wrenches at lists.re-wrenches.org
Subject: [EXT] Re: [RE-wrenches] Flir One for Smart Phones

External Email - Use caution when responding, clicking, and/or downloading attachments.
________________________________

You would have to have a serious heat differential from inside to outside for that too work.  And it still wouldn't get you closer than a hammer.  Also, most attics are ventilated so they would be close to the outside temp anyway.  Usually the insulation is on the ceiling not under the roof.

On a cold night with a vaulted ceiling is the only time it "might" work.

Ray Walters

Remote Solar

303 505-8760
On 8/4/20 12:19 PM, Solar Energy Solutions wrote:
We have spent a lifetime hoping, searching, dreaming of an easy and affordable means of finding roof rafters.  Has anyone used the Flir One for smart phones with any kind of success to accomplish this task???

P.S.  We are well aware of how inexpensive hammers are!


Andrew Koyaanisqatsi
President
Solar Energy Solutions, Inc.
The BRIGHT CHOICE
Since 1987, helping you and your Portland neighbors
move towards an environmentally sustainable future.
503-238-4502
