[RE-wrenches] Moving HUP Solar ONE Batteries AKA "DOING THE BATTERY DANCE"

[Dana Orzel]

For rolling thru a building, I bought a “safe mover”: $569

https://www.northerntool.com/shop/tools/product_200673748_200673748



It has 2 end sets of turnable poly-urethane wheels, hydraulic jacks on both ends, & ratchet straps that connect one end with the other end.

Rated at 3000#. Great for moving almost everything. You do have 4 point loads so if you are rolling over tile or stone floors I suggest laying down ¾: ply for dispersing the weight a bit.



For getting down the road: $ cost custom built trailer…



For narrow mountain roads & tight switchbacks - I built a narrow 3 ton trailer with an overhead Gannon I-Beam for a roller, & use a 2 ton chain fall to lift and roll the batteries off. The trailer has crank down jacks on each corner to stabilize the lift & transport while unloading.

It will hold 4 of the smaller HUP Batteries & only 2 of the 2490 AHR/12 VDC cans.



If anyone want pics let me know & I can either post or email direct.







Dana Orzel                              Great Solar Works, Inc.

C - 208.721.7003                       dana at solarwork.com

Idaho Contractor - # 028765         Idaho PV # 028374

NABCEP # 051112-136                        <http://www.solarwork.com/> www.solarwork.com

"Responsible Technologies for Responsible People since 1988"

P Please consider the environment before printing this email.





From: RE-wrenches <re-wrenches-bounces at lists.re-wrenches.org> On Behalf Of Jason Szumlanski
Sent: Thursday, July 23, 2020 4:22 PM
To: RE-wrenches <re-wrenches at lists.re-wrenches.org>
Subject: Re: [RE-wrenches] Two Dilemmas



Chain hoist and muscle for the move. It's not easy. It can be hard to get them out of the steel case. Slow and careful... I haven't done this a lot, but the few times it was a dicey proposition.



Jason Szumlanski







On Thu, Jul 23, 2020 at 5:47 PM Rick Brown <rick at solshineenergyalternatives.com <mailto:rick at solshineenergyalternatives.com> > wrote:

Wrenches,



Dilemma #1:

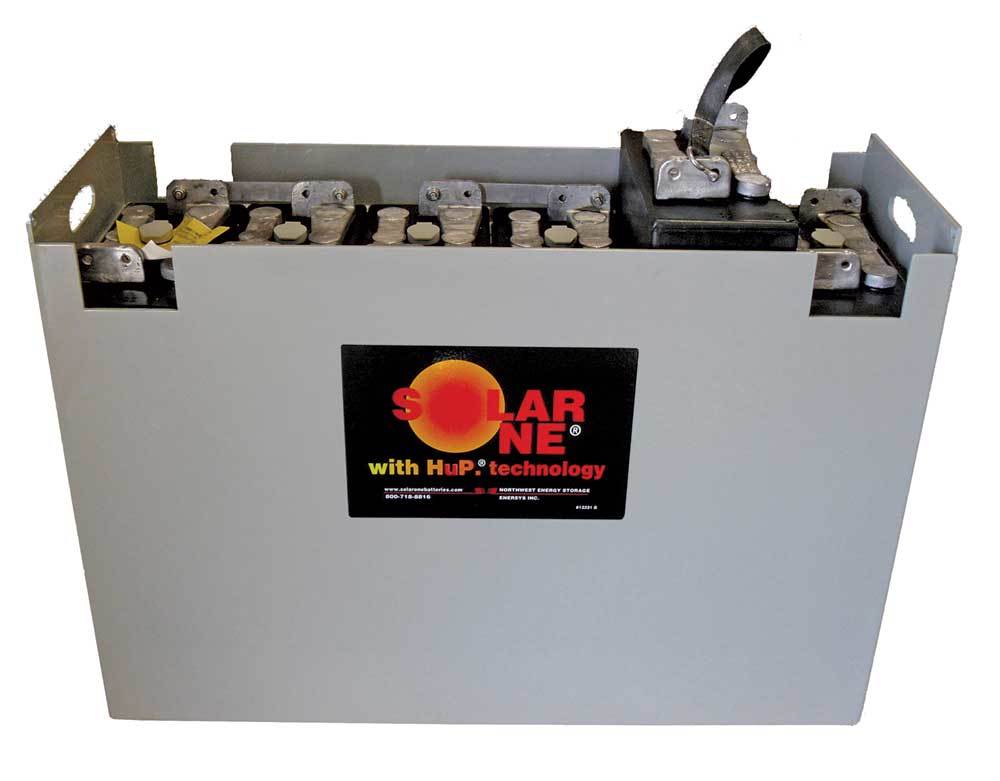

I’ve had to replace 4 sets of Solar One batteries (see pic). Each set weighs in excess of 1000lbs. How have you all transported these? The originals were placed into service prior to the room’s walls and roof going up.







Dilemma #2:



The above system is comprised of a Trace SW5548 along with two Outback FM60s. After reprogramming the CCs and inverter with new charging parameters, I can’t get the Trace to export excess production once the batteries are charged. I do have the inverter set to “Sell” mode What am I missing? I have had little experience with the Trace line.



Thanks,

rick brown
SolShine Energy Alternatives, LLC
Electrical & Solar Contracting Services
www.SolShineEnergyAlternatives.com <https://mailtrack.io/trace/link/cd6490343ec8bea89108ca98f415d0f333006459?url=http%3A%2F%2Fwww.SolShineEnergyAlternatives.com&userId=1613865&signature=0f9b54a9d3333480>
Check, Virginia 24072
540.808.9502 <tel:540.808.9502>

VA Class A Contractor Lic# 2705147660
VA Master Electrician Lic# 2710062762
VA Alternative Energy Systems Installer
NABCEP Certified PV Installation Professional 110112-21
