[RE-wrenches] Tracker manual needed

[Dave Angelini Offgrid Solar]

Larry is right on this, N-S mount tracking east west. I may have a
manual on my office computer. back later.

Dave Angelini Offgrid
Solar
"we go where powerlines don't"
http://members.sti.net/offgridsolar/
[1]
e-mail offgridsolar at sti.net [2]
text 209 813 0060

On Wed, 22 Jul 2020
09:53:08 -0700, "larry at starlightsolar.com"  wrote: William,   This type of
mount is a polar axis type and should be aligned with the pivot N-S. The

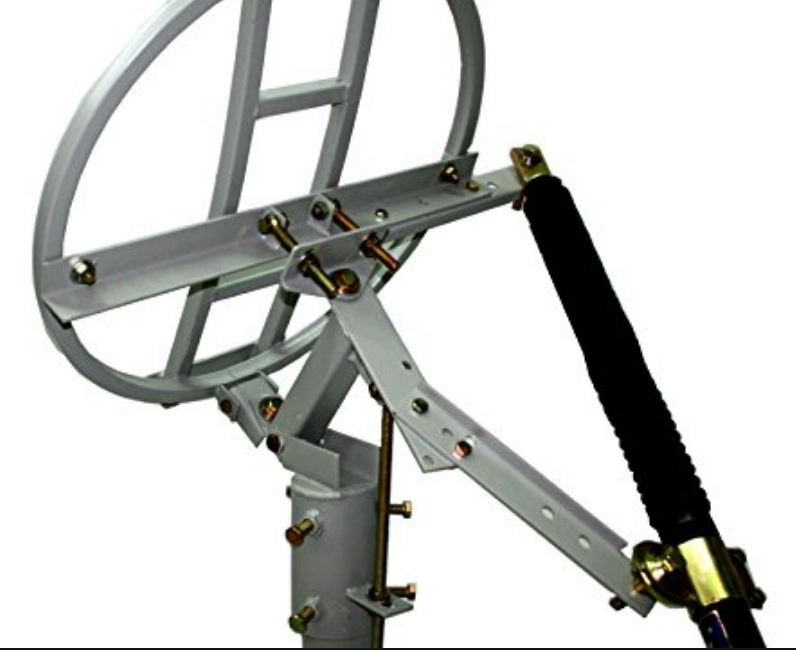

actuator can then swing the array E-W. The attached photo is an example of
how the mount was used in the C-band antenna days. (1980's for the young
folks)   It's hard to tell but it looks like the elevation bolt is missing
that connects the azimuth bar to the pole mount cap. Can you supply a
better photo of the mount?    Set the elevation angle to latitude for best
all year performance. Elevation can also be seasonally adjusted for more
gain.    There are 3 types of sensors most commonly used in this style of
linear actuator. Hall effect, reed switch or a 10 turn potentiometer.

Larry Crutcher
Starlight Solar Power Systems

 On Jul 22, 2020, at
8:33 AM, William Miller  wrote:
  Dave:   The trackers appear to work. I
am not clear on what direction to orient them. Do you know?

 William
Miller  www.millersolar.com [4]
