[RE-wrenches] Label Durability

[Martin Herzfeld]

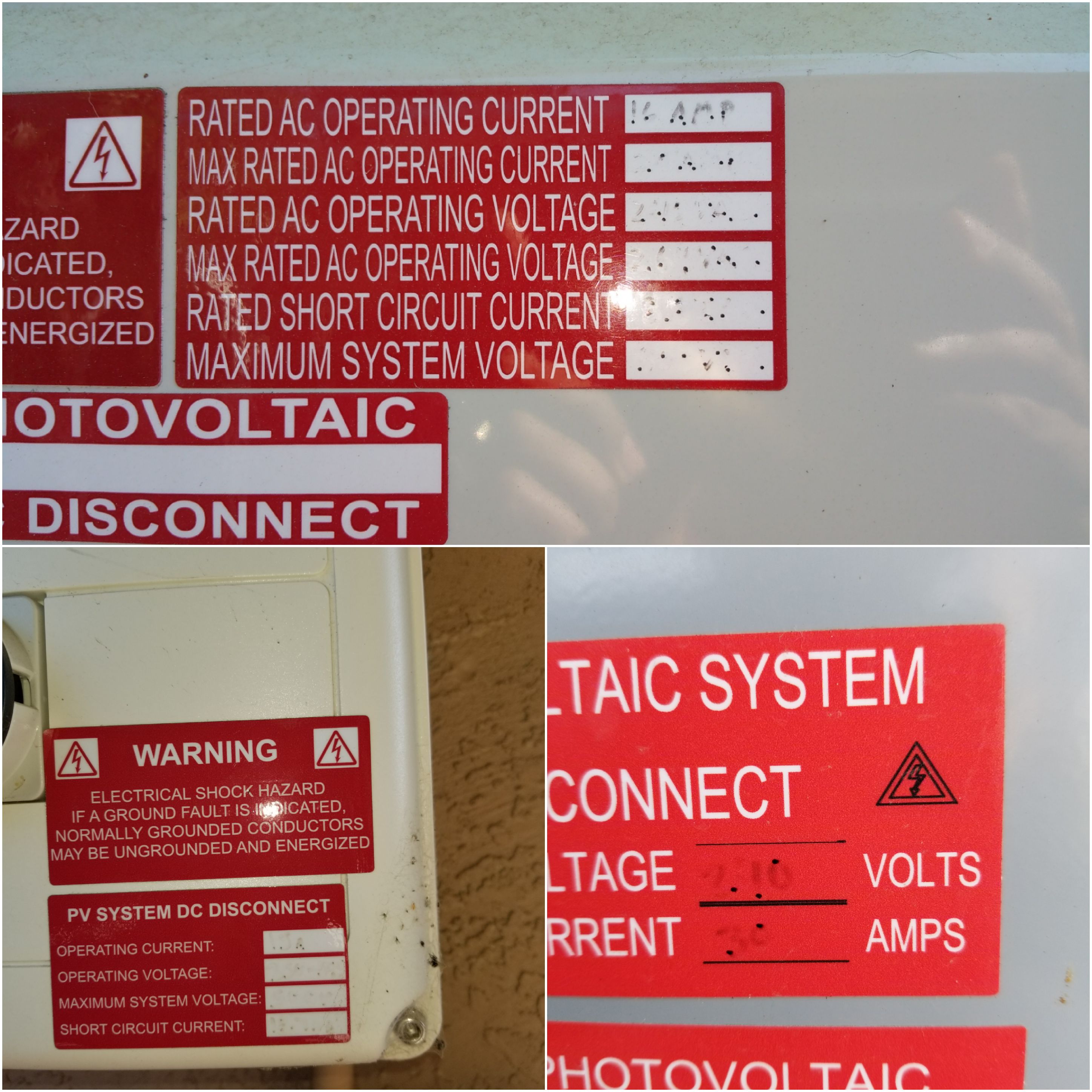

A.  Attached are samples of field applied hazard marking (Photos) on the
topic of durability and handwritten.

B.  2017 NEC 110.21(B)(2) Field-Applied Hazard Markings. Where caution,
warning, or danger signs or labels are required by this Code, the labels
shall meet the following requirements:

 -  The label shall be permanently affixed to the equipment or wiring
method and *shall not be handwritten*

   1.

   -  Exception to (2): Portions of labels or markings that are variable,
   or that could be *subject to changes, shall be permitted to be
   handwritten* and shall be legible.


   In other words, are the portions of labels subject to changes? :)


All the best,

Martin Herzfeld, Interstate Renewable Energy Council (IREC) Certified
Master Trainer ™ for Photovoltaics (PV) Installation Professional #IREC
10037
Contract Training Provider (CTP)
Adjunct Professor, Energy

California Solar & Electrical Contractor License  #00833782  C46, C10, D56,
D31, C-7
Solar, Electrical, Trenching, Pole Installation & Maintenance,
Instrumentation

Contract Solar (PV) Technical Inspector - 3rd Party Inspections
Underwriters Laboratories (UL) Certified PV Installer #17, OSHA 30
OSHA-Authorized Construction Trainer #32-0105338
CompTIA Certified Technical Classroom Trainer (CTT+) #T3NSZCNBBKB4QTQG

* Professional Member, International Association of Electrical Inspectors
#7035507 - Since 2006
* Accredited and Registered North American Board of Certified Energy
Practitioners (NABCEP) Continuing Education (CE) Training Provider

On Sat, Jun 27, 2020, 4:18 PM Ray <ray at solarray.com> wrote:

> Sharpie fades pretty fast in the sun (1 year?).  Paint pen would do
> better, but can be messy.
>
> Ray Walters
> Remote Solar
> 303 505-8760
>
> On 6/27/20 5:06 PM, Jesse Dahl wrote:
> > Did you use a sharpie on the box? I wonder how a sharpie or PICA marker
> would hold up for 10 years.
> >
> > It’s an awesome test though. I love it.
> >
> > Jesse
> >
> > Sent from my iPhone
> >
> >> On Jun 27, 2020, at 12:59 PM, Corey Shalanski <coresolar at gmail.com>
> wrote:
> >>
> >>
> >> About ten years ago we set up a test wall of sorts at our company
> headquarters in New Orleans. The purpose was to monitor the
> durability/degradation of various materials - including warning labels. We
> tried to attach a variety of label types: plastic trophy plaques, vinyl
> stickers, labelmaker tape. We also used various adhesives: sticker OEM
> adhesive, double-sided tape, "Gorilla Glue", PVC cement. It should be noted
> that the wall faced southeast and was uncovered, so that it received daily
> full sun and was exposed to all other environmental conditions (rain, etc).
> >>
> >> The results today do not look good (attached photo). None of these
> products would appear to meet the "sufficient durability" requirements of
> NEC 110.21(B).
> >>
> >> I am curious if anyone is aware of any similar (but more formalized)
> product testing? and can share results?
> >>
> >> Has anyone found a warning label product that performs particularly
> well over time?
> >>
> >> --
> >> Corey Shalanski
> >> <Durability Test Wall.jpg>
