[RE-wrenches] Mass failure of Siemens SP150s

[Dana Orzel]

Are there burn marks on the backing?

I have had several entire array replacements in the past back in the 150-175 watt/module days. But not in a while.







Dana Orzel                              Great Solar Works, Inc.

C - 208.721.7003                       dana at solarwork.com

Idaho Contractor - # 028765         Idaho PV # 028374

NABCEP # 051112-136                        <http://www.solarwork.com/> www.solarwork.com

"Responsible Technologies for Responsible People since 1988"

P Please consider the environment before printing this email.





From: RE-wrenches <re-wrenches-bounces at lists.re-wrenches.org> On Behalf Of William Miller
Sent: Friday, June 26, 2020 4:06 PM
To: RE-wrenches <re-wrenches at lists.re-wrenches.org>
Subject: [RE-wrenches] Mass failure of Siemens SP150s



Friends and colleagues:



I recently performed a service call at a grid-tied installation we did in 2003.  The homeowner noticed the daily consumption had declined to about 1/3 of typical sometime in the last year.  Sure enough 2 of the three strings (30 mods in total) of Siemens SP150s showed low voltage.



When I tilted up two of the racks to expose one dead string of 10, I found that 6 of the 10 panels had 1/3 or 2/3 of the expected OC voltage.  Testing of the individual strings indicated that 1 or 2 strings were dead on each affected panel.

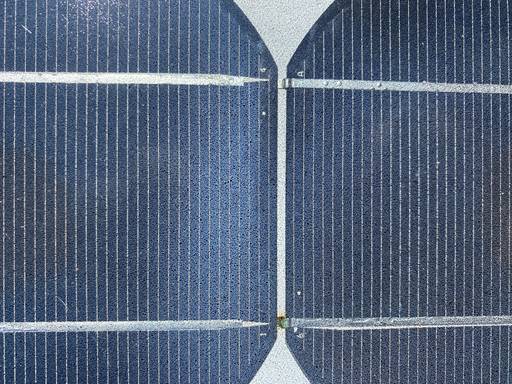

Close examination revealed pinpoint heat damage on inter-cell traces.  The diodes tested good.  See photo below.







I am surprised to see such a high rate of failure.  Has anyone else experienced this with these or other panels?



Is anyone servicing warranty claims on these ancient panels?  I doubt there is much value left in the warranty but I am curious.



Thanks in advance.



William Miller
