[RE-wrenches] Direct solar options for stock tank de icing

[Benn Kilburn]

I built this one (first photo) for our horses....sitting in the corner on the styrofoam is the plug in heater that floats in the tank. The cover (same thickness styrofoam) has a hole about the size of a basketball for the horses to drink.

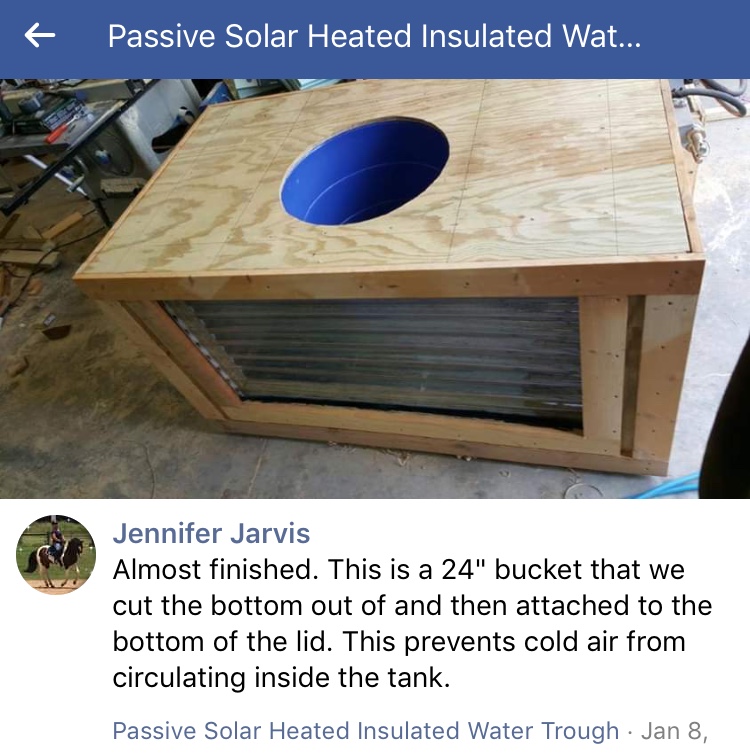

And the second photo was a suggestion I came across on social media... cutting the bottom out of a bucket and attaching it to the cover to minimize air contact on the surface of the water....
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image1.jpeg
Type: image/jpeg
Size: 797804 bytes
Desc: not available
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches_lists.re-wrenches.org/attachments/20200211/c09617b2/attachment.jpeg>
-------------- next part --------------


-------------- next part --------------
A non-text attachment was scrubbed...
Name: image2.jpeg
Type: image/jpeg
Size: 179186 bytes
Desc: not available
URL: <http://lists.re-wrenches.org/pipermail/re-wrenches_lists.re-wrenches.org/attachments/20200211/c09617b2/attachment-0001.jpeg>
-------------- next part --------------



Benn Kilburn
SkyFire Energy
780-906-7807

> On Feb 11, 2020, at 7:54 AM, Hilton Dier <hiltondier at gmail.com> wrote:
>
> Daryl Thayer has the key to this: surface insulation. About 90% of heat loss from an open body of water is from evaporation. There are black plastic balls (about 5” dia) you can get to float on top in a layer. Blue foam works but deteriorates in the sun. I know we are all about electrical and mechanical solutions on this list, but whatever you do, don’t waste your money trying to heat an open surface water tank.
>
> Hilton Dier III
> Renewable Energy Design
> Missisquoi River Hydro LLC
