[RE-wrenches] 230Vac load on OB FX2524T system

[Kirpal]

Is the mini split European voltage where it is 230v line 1 to
neutral......Outback makes inverters for that too.... 50 hz?
Kirpal

On Wed, Jul 24, 2019, 11:06 PM David Palumbo <palumbo131m at gmail.com> wrote:

> I apologize for my ignorance on this issue, but in all my years I have
> never had to power a 230V load with an OutBack system before.
>
> A couple of quick questions. It is a 8 year old OutBack system with two
> FX2524T’s presently powering two 120Vac legs with no 240Vac output.
>
>    - Homeowner is adding a Fujitsu mini split heat pump for air
>    conditioning the home (summers are getting hot enough for AC even in
>    northern Vermont).
>    - It uses 7.9 Amps @ 230Vac
>    - I have a OB PSX-240 Autoformer manufactured in 2008 in my inventory
>    here. Should I use it for this application?

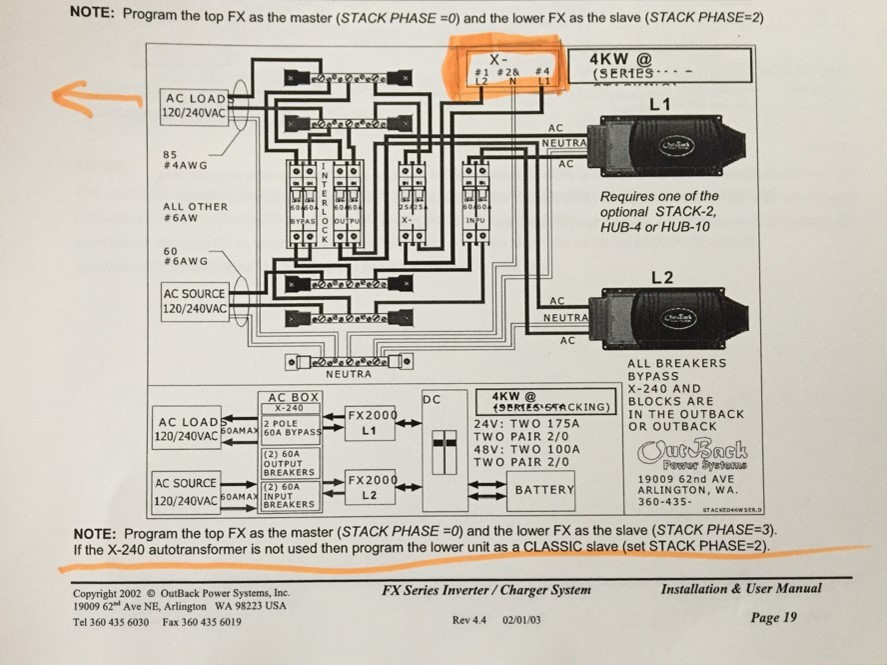

>    - Do I wire it up just like in this schematic?
>    - If so, what do I change in the programing on the Mate?  Presently it
>    is ADV/FX/STACK  stack 1-2ph Master. Do I simply change it to  ADV/FX/STACK
>     stack Classic Slave?
>
> Thanks,
>
> Dave Palumbo, Independent Power, Hyde Park, VT
>
>
>
> [image: cid:image003.jpg at 01D54135.D30AA520]
>
>
>
> Sent from Mail <https://go.microsoft.com/fwlink/?LinkId=550986> for
> Windows 10
>
>
