[RE-wrenches] 230Vac load on OB FX2524T system

[David Palumbo]

I apologize for my ignorance on this issue, but in all my years I have never had to power a 230V load with an OutBack system before.
A couple of quick questions. It is a 8 year old OutBack system with two FX2524T’s presently powering two 120Vac legs with no 240Vac output.
• Homeowner is adding a Fujitsu mini split heat pump for air conditioning the home (summers are getting hot enough for AC even in northern Vermont).
• It uses 7.9 Amps @ 230Vac
• I have a OB PSX-240 Autoformer manufactured in 2008 in my inventory here. Should I use it for this application?

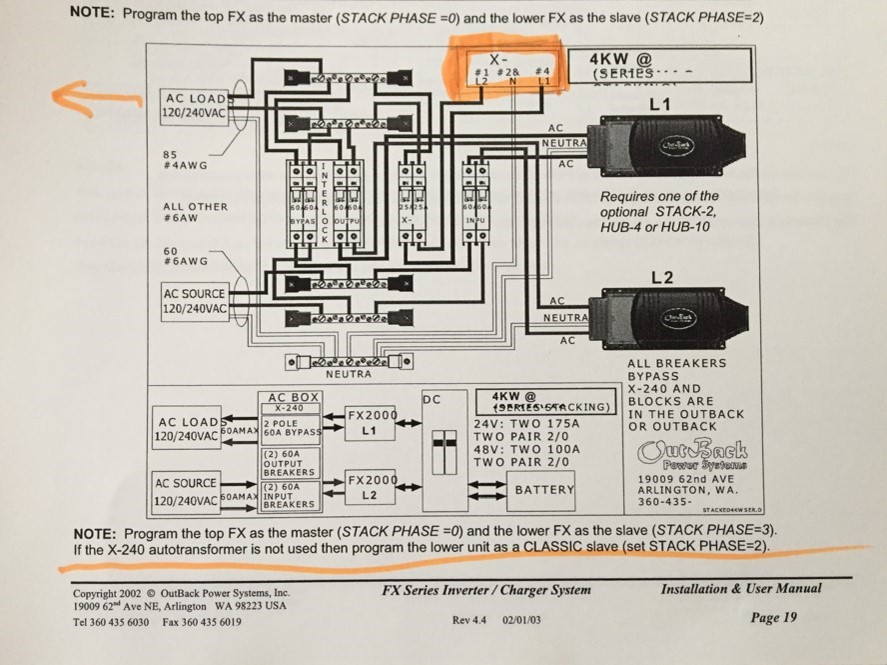

• Do I wire it up just like in this schematic?
• If so, what do I change in the programing on the Mate?  Presently it is ADV/FX/STACK  stack 1-2ph Master. Do I simply change it to  ADV/FX/STACK  stack Classic Slave?
Thanks,
Dave Palumbo, Independent Power, Hyde Park, VT
