[RE-wrenches] Storedge self-consumption data collection

[Kirk Herander]

Hi All,

I'm wondering if there are any Storedge data gurus out there who could help
with the following. I just set up a 2-pack LG chem bank with a grid-tied
Storedge.

I have the SE meter device type set to Revenue, and meter function to
export/import.

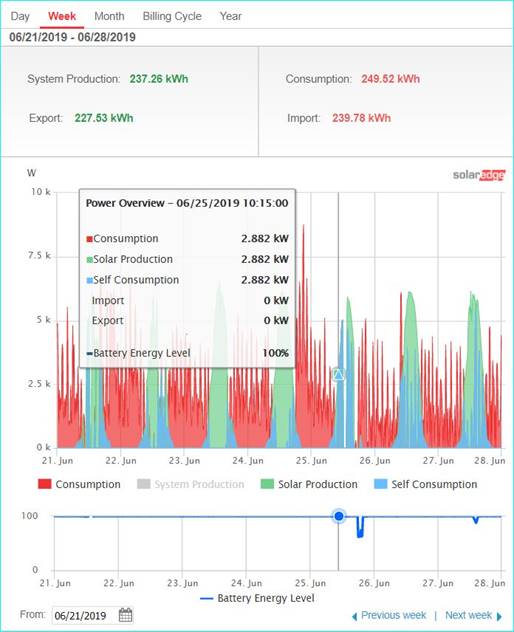

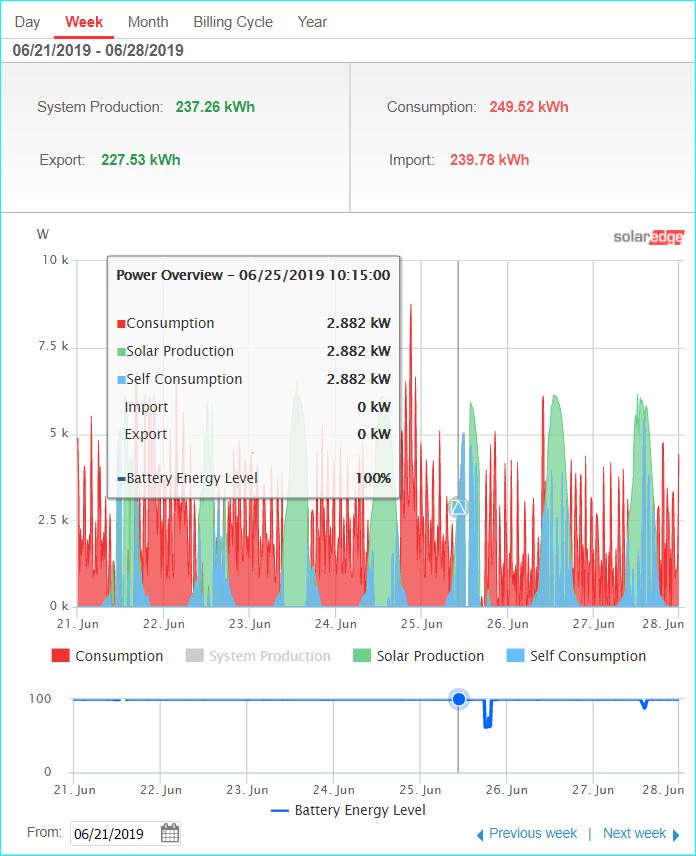

The daily energy curves show expected reporting including self-consumption
as below:

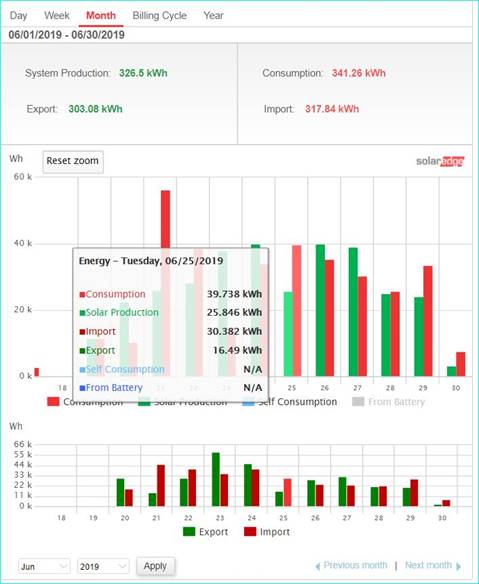

BUT the monthly bar chart by day does not show self-consumption.



So for some reason S-C is being recorded as real-time KW's daily as it
should, but not massaged into KWH and recorded over a time frame. The raw
data .CSV downloads confirm the chart representation.

What I want to do is obtain the S-C kwh data for some custom spreadsheets. I
have one other SE-metered system which reports S-C KWH over time as one
would expect, but with a battery-less Solaredge inverter.

Besides the batteries, the only difference between the two systems is that
the non-battery site meter is set to Consumption. Any ideas would be greatly
appreciated. Thanks.



Kirk Herander

Owner|Principal, VT Solar, LLC

Celebrating our 28th Anniversary 1991-2019


<https://nam02.safelinks.protection.outlook.com/?url=www.vermontsolarnow.com
&data=02%7C01%7C%7C9f0330d75a244870112408d685311841%7C84df9e7fe9f640afb435aa
aaaaaaaaaa%7C1%7C0%7C636842843233477645&sdata=0NjyuKeQbEK6245SNnk8X4XnP9Q%2B
%2BqtvcALkdDghvk4%3D&reserved=0> www.vermontsolarnow.com

dba Vermont Solar Engineering

NABCEPTM  2003 Inaugural Certificant

VT RE Incentive Program Partner

802.863.1202
