Yes, two radians combined can handle one 12 kW grid tied inverter.

The 6 kW limitation is not a limitation of how much power the radian can actually handle, it's that the grid tied inverters do an impedance/stability test, and some inverters larger than 6 kW will detect that the inverter is not actually the grid, and the GT inverter will shut down before it even fires up. If it weren't for that, the radian would be able to handle more PV in an AC coupled situation.

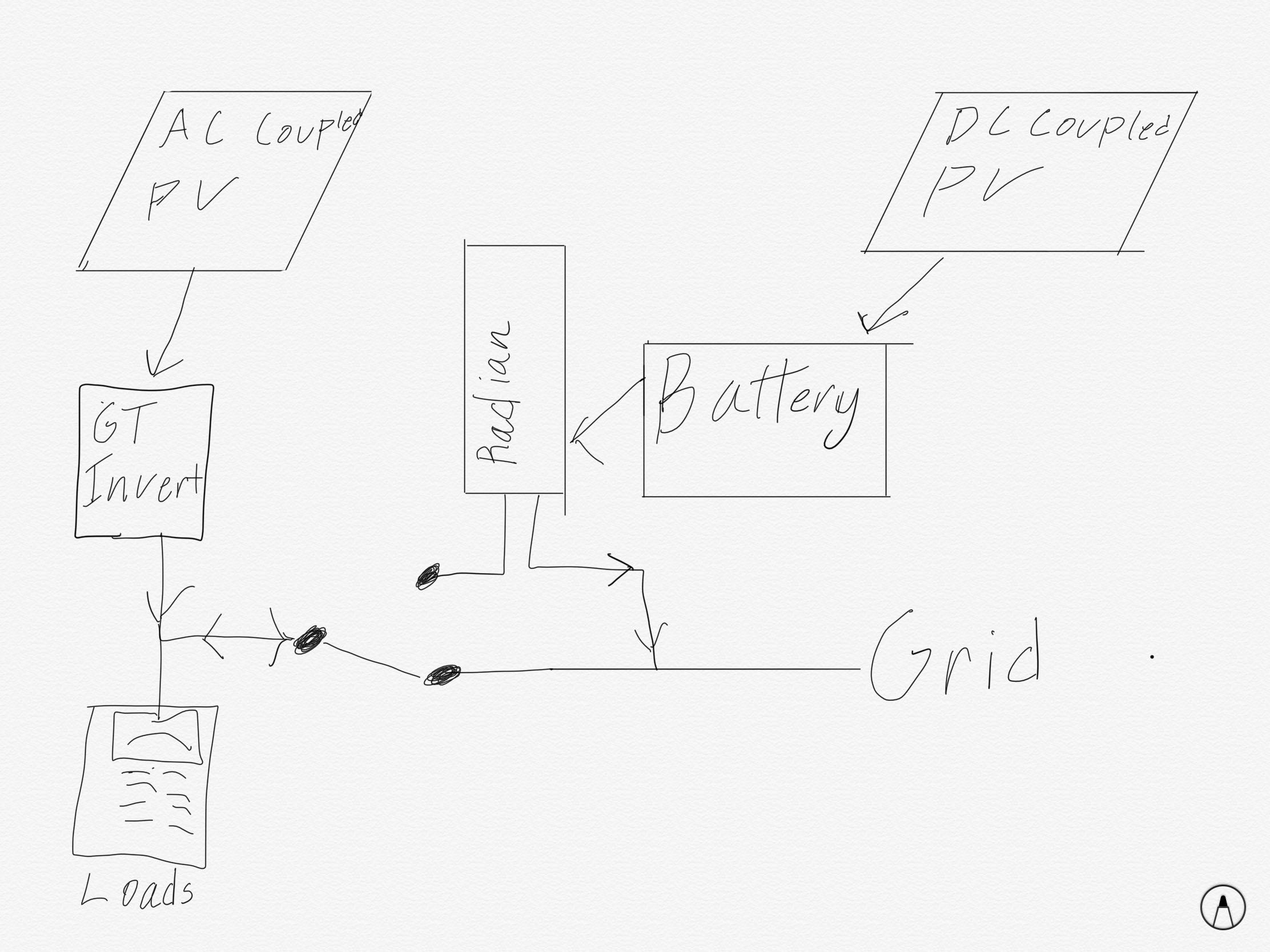

Is this an all new system? Sometimes, doing a mixture of AC and DC coupling makes the most sense financially if you don't actually need 4 radians worth of backup power. The following setup I'm talking about assumes that you have an external transfer switch, and it's the extreme setup, not necessarily a recommended setup. I just want to demonstrate that you would really only need 2 radians if the required instantaneous backup power needs were low enough.

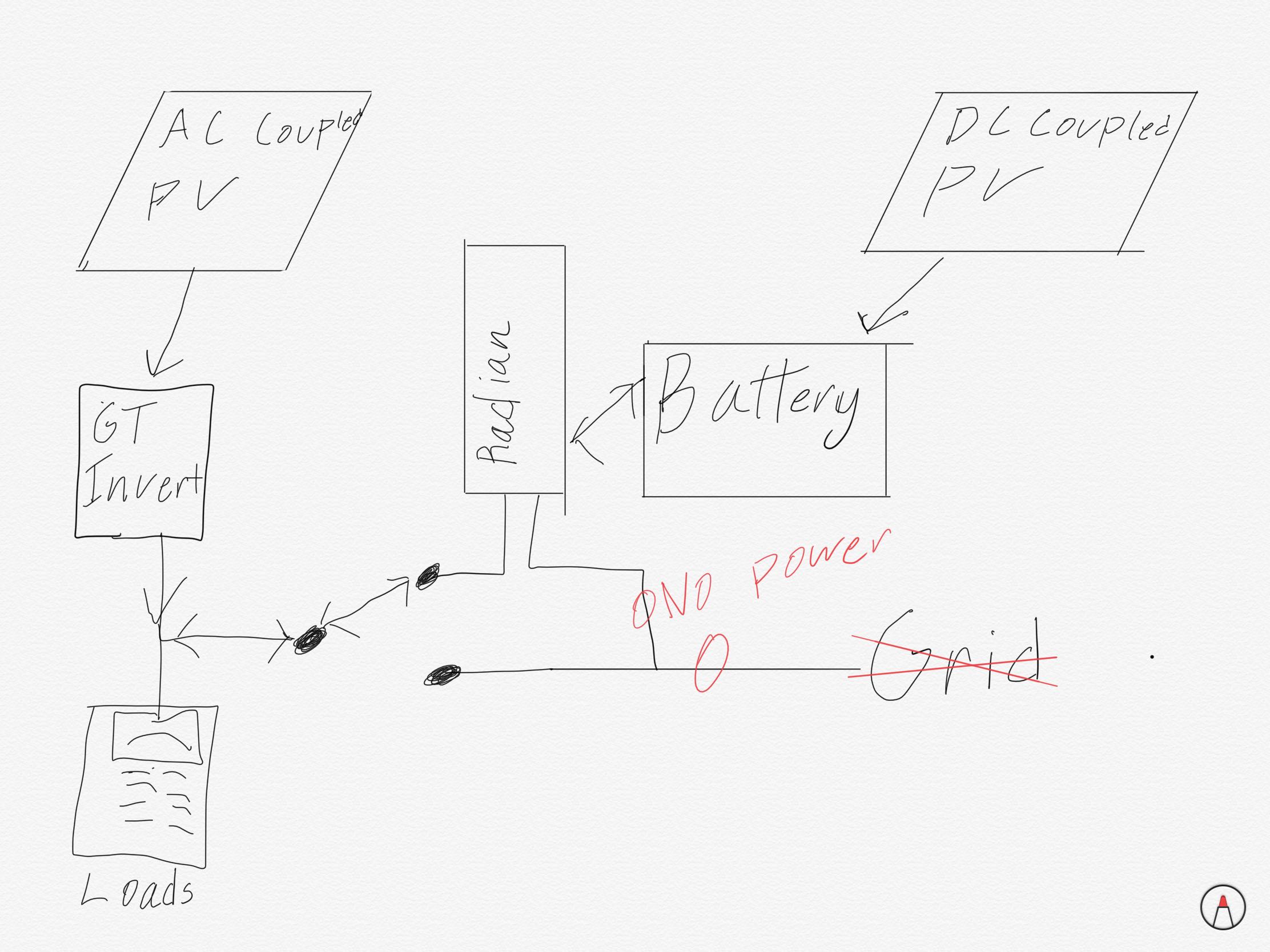

If you do an AC/DC coupled mix, for each Radian, you can actually handle up to 6 kW AC of GT inverter(s), and it can export 7.2 kW AC from the DC coupled side. With a DC/AC ratio of 1.25, that would be 7.5 kW of AC coupled PV and 9 kW of DC coupled PV, so with the right design and external transfer switch, the radian could potentially handle up to 16.25 of PV per inverter. Now you have to tie the AC coupled PV into the load side of the transfer switch (or in the backed up loads panel). This way, if the grid is available, the AC coupled PV is not connected at all to the battery based inverter, but when the power fails, then the PV gets connected to the radian(s) through the transfer switch. Again, I want to stress that it is imperative that with this kind of system, it has to be tied through an automatic external transfer switch, and that you can't have the power flowing to the grid from both the AC and DC coupled PV simultaneously.

Hope this is somewhat helpful.

Thanks,
Kienan

Maxfield Solar
maxfieldsolar at hotmail.com<mailto:maxfieldsolar at hotmail.com>
(801) 631-5584 (Cell)
